ADA Compliant Men's Restroom Sign Set – Braille Door & Wall Sign

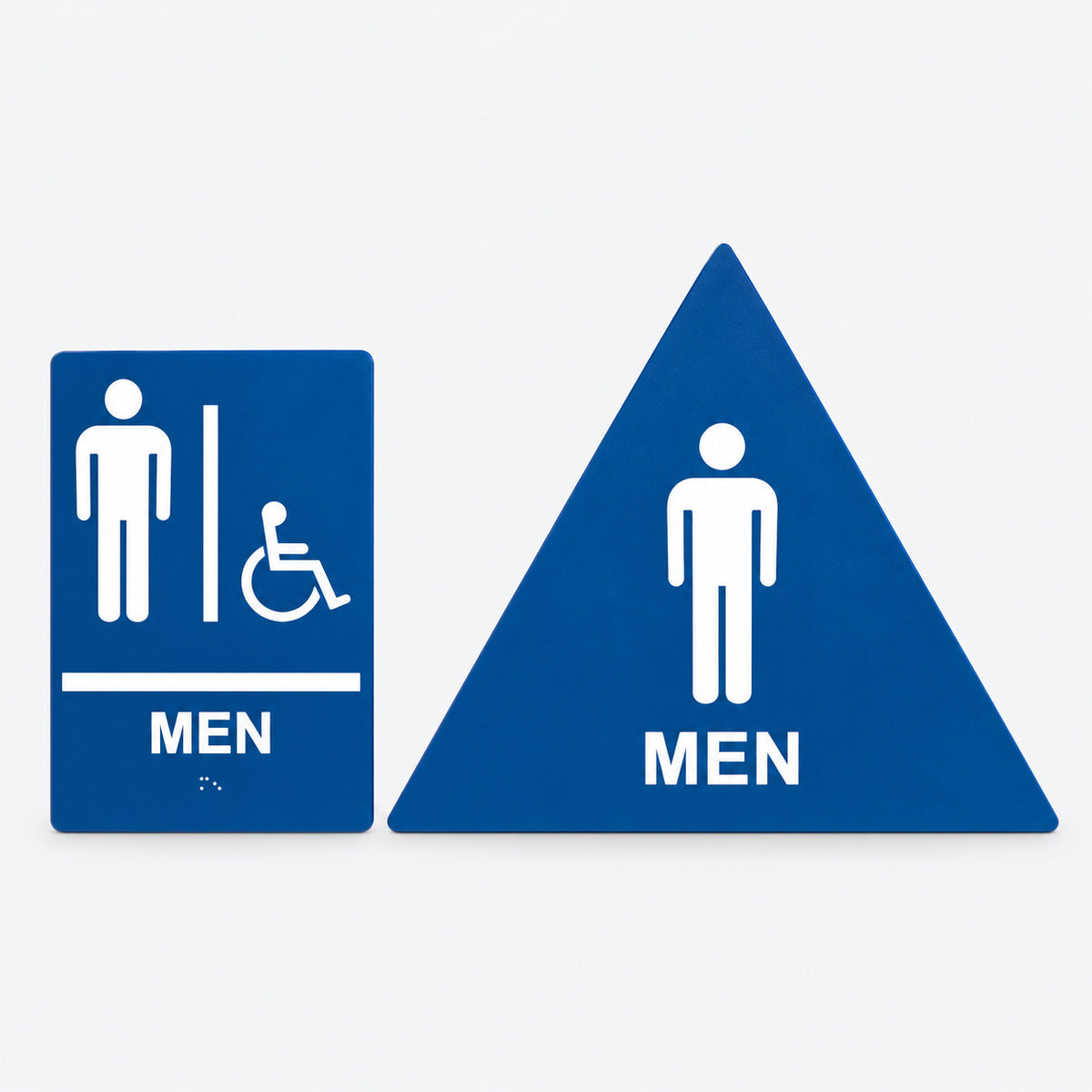

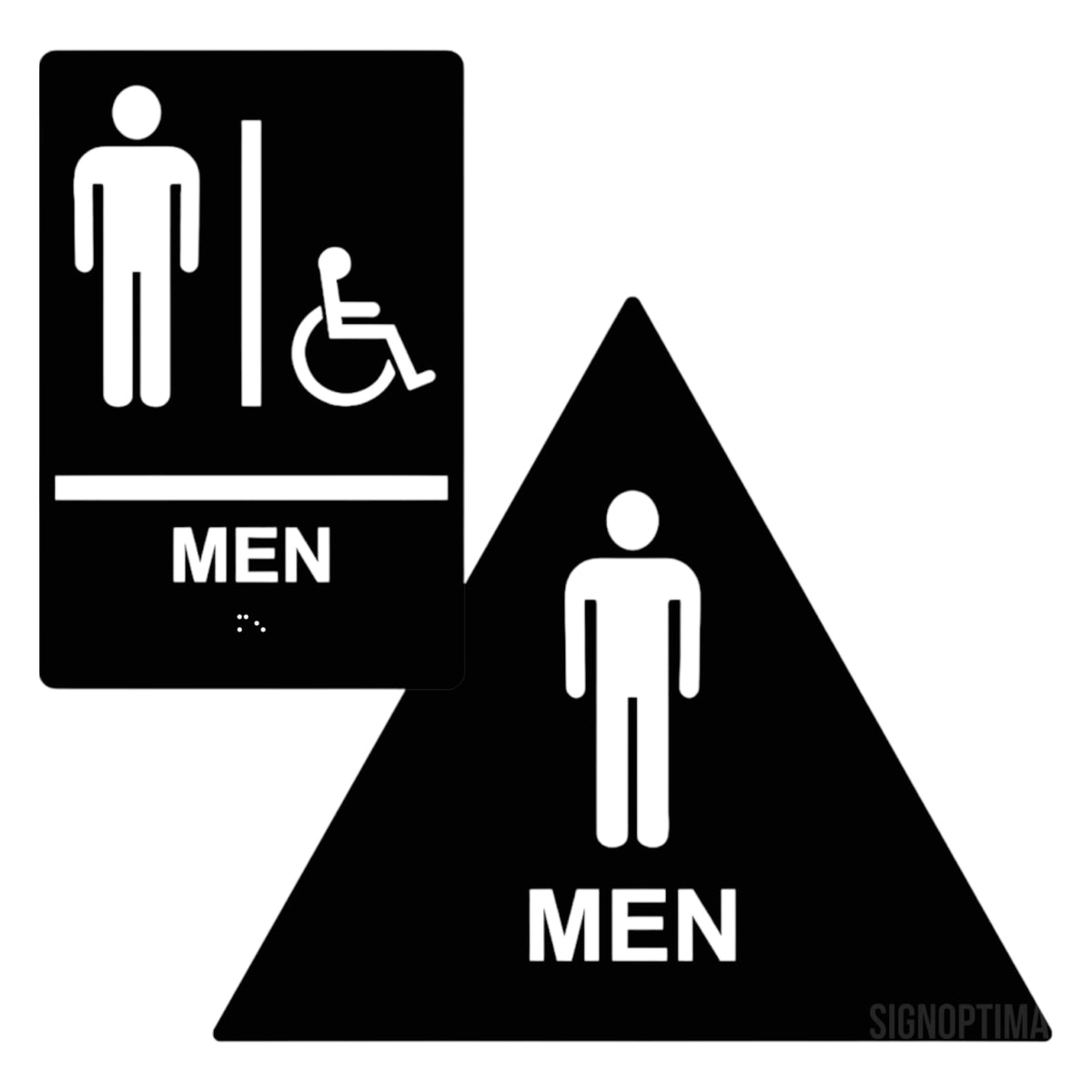

Get both men's restroom signs in one set: a 12" triangle door sign and a 6" x 9" tactile wall sign with raised pictogram and Grade 2 Braille. California requires a geometric symbol on the door and a tactile sign beside it (CBC 11B-216.8).

Product Features:

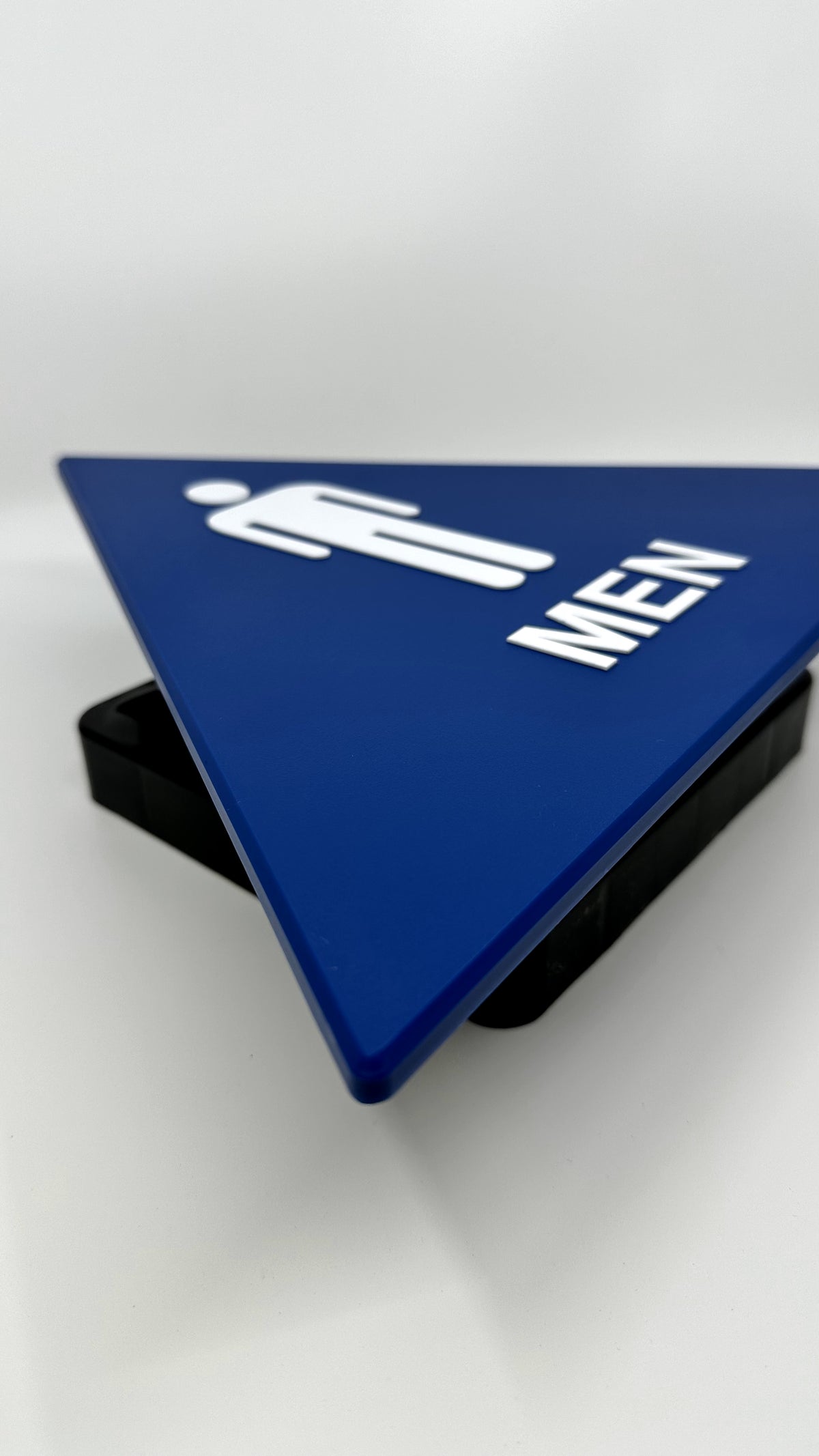

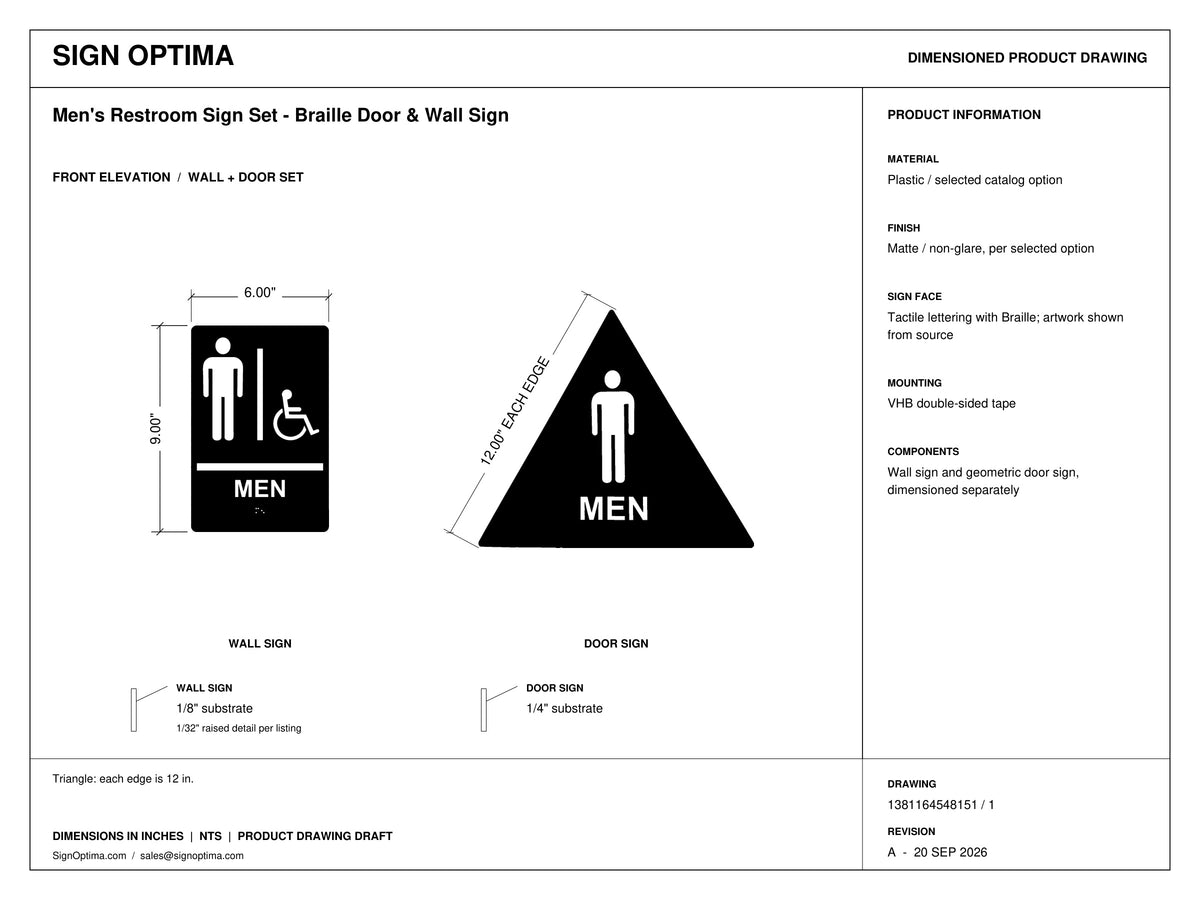

• Door sign: 12" equilateral triangle, vertex up, 1/4" thick

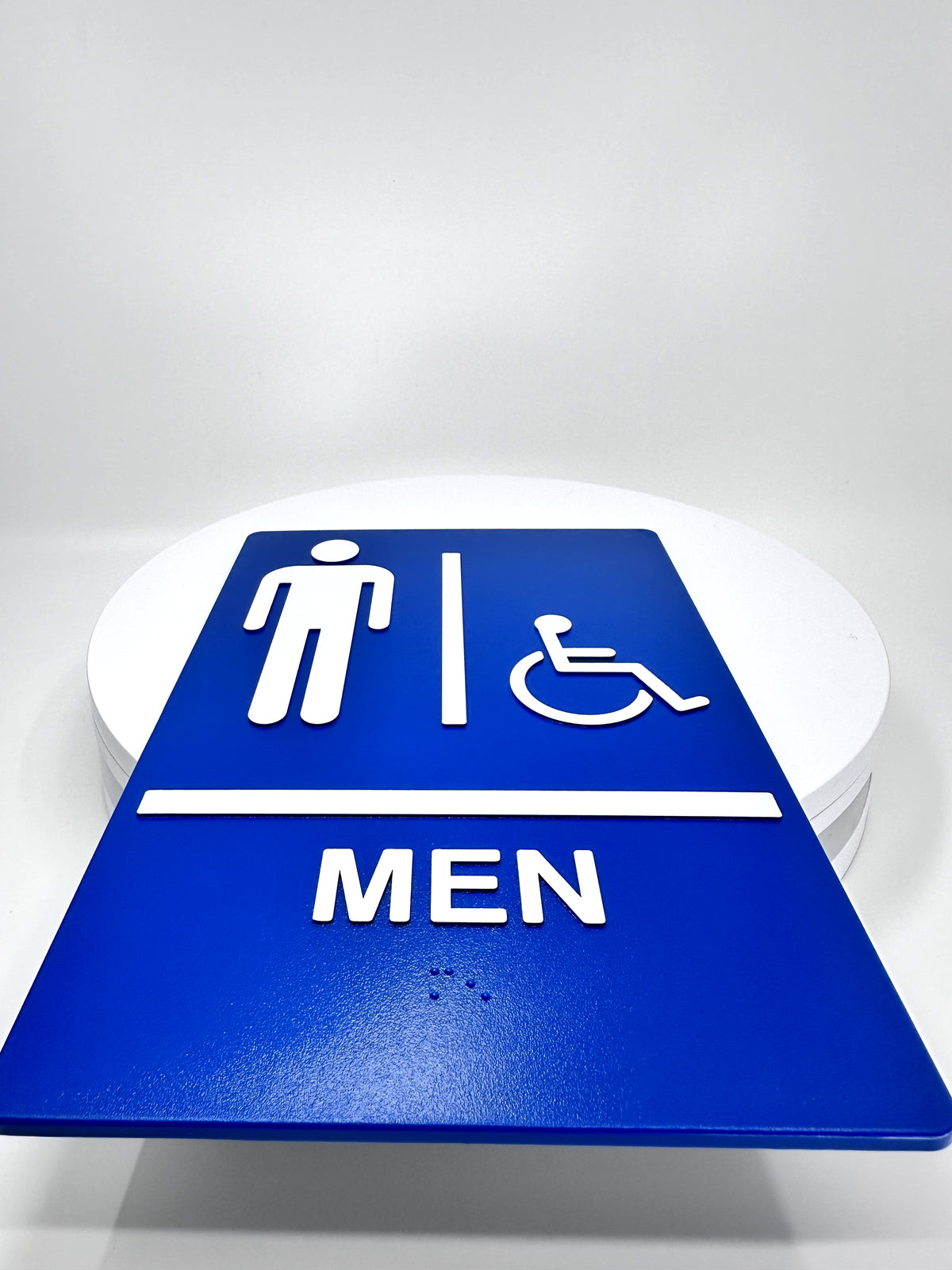

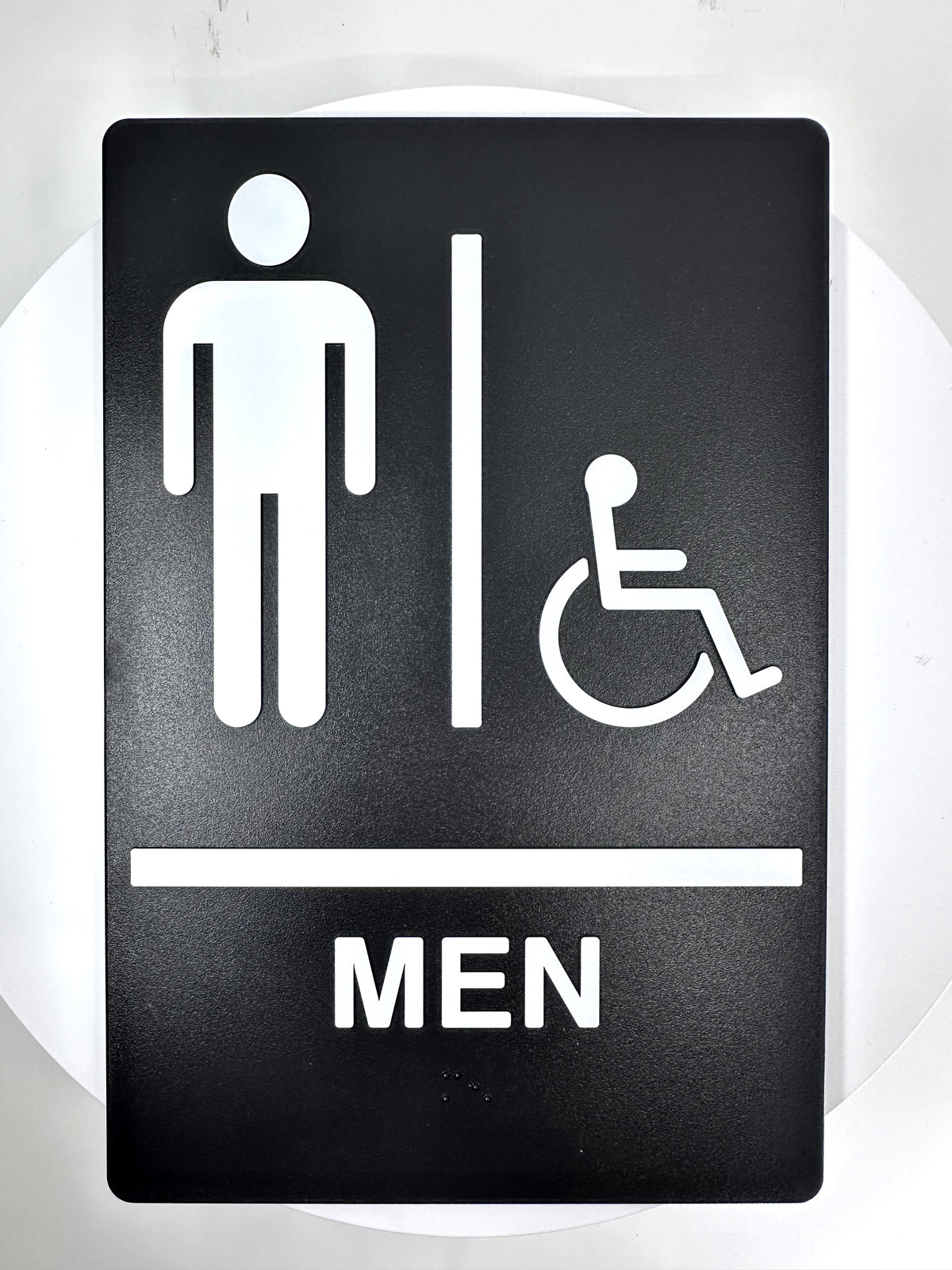

• Wall sign: 6" x 9" with raised men's pictogram and 1/32" raised letters
• Braille: Grade 2, on the wall sign
• Finish: matte, non-glare, with high-contrast graphics

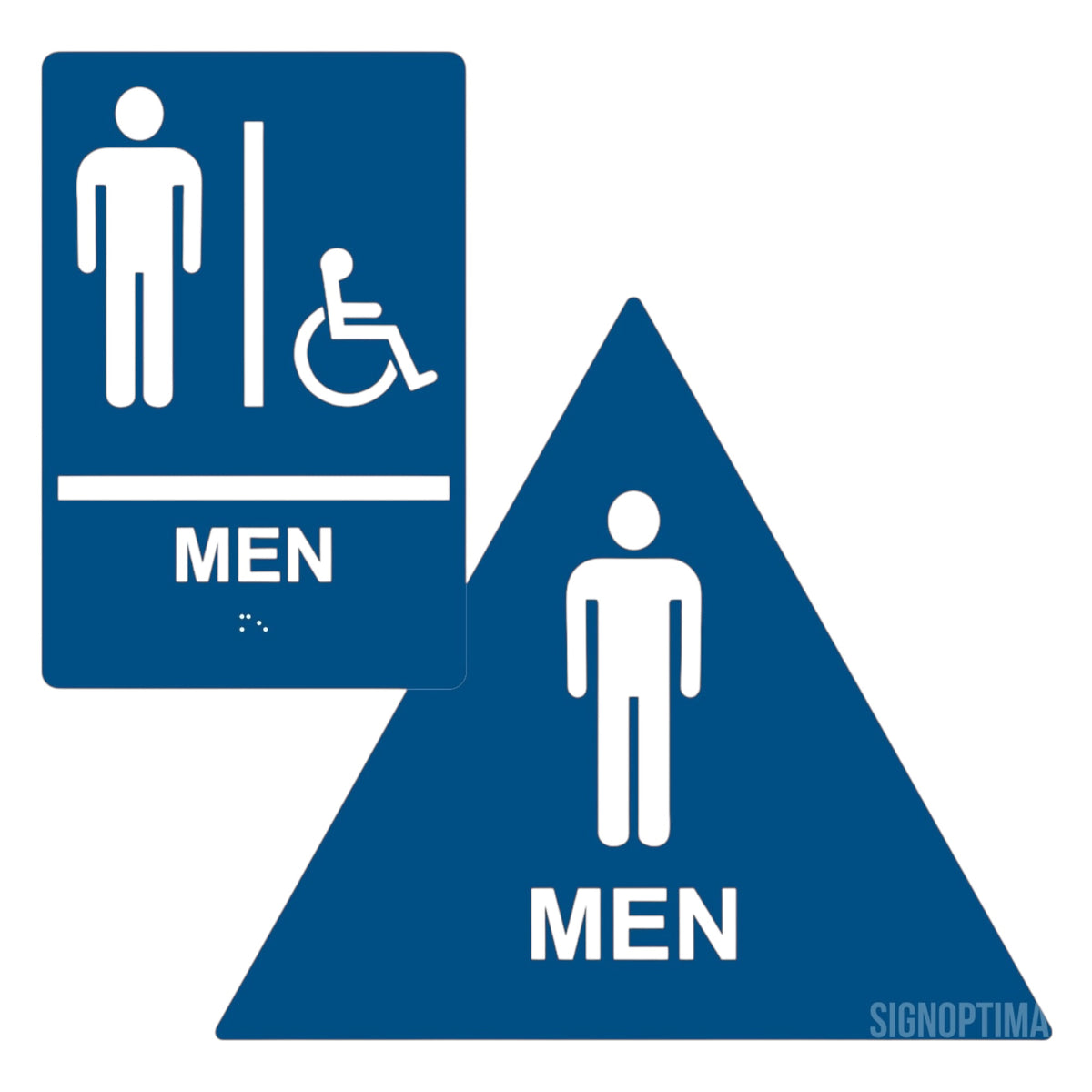

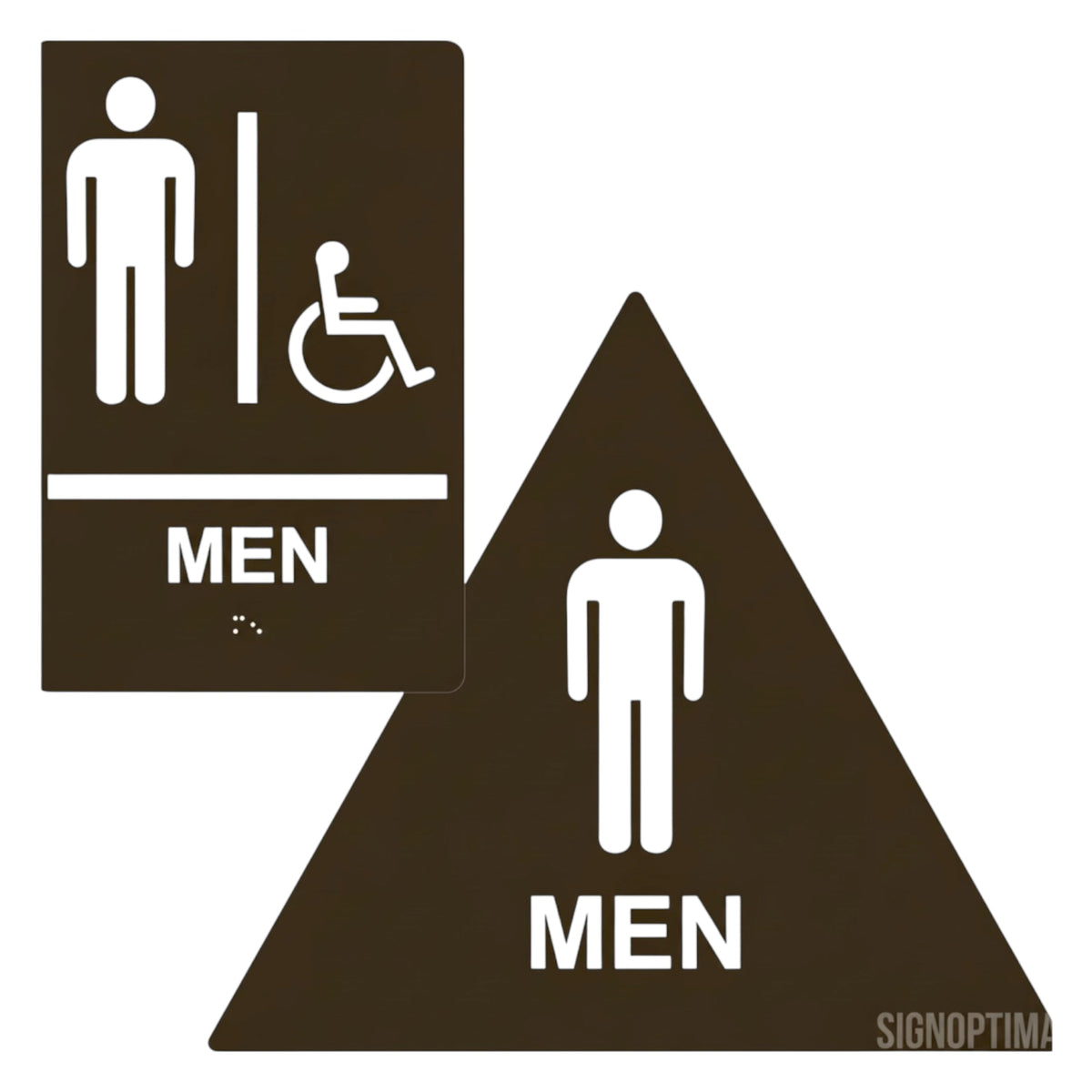

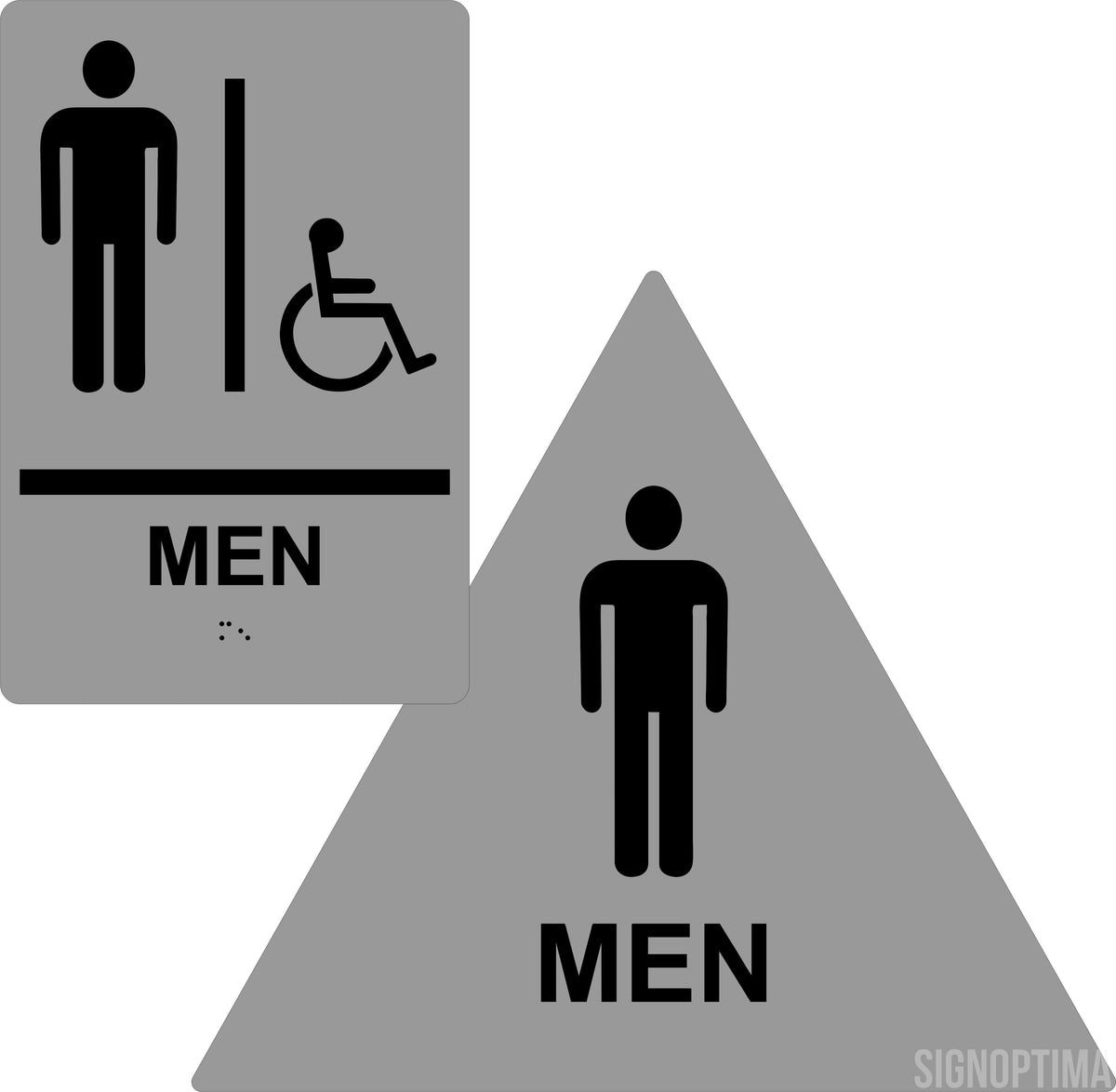

• Colors: Blue, Black, Brown, Silver, White

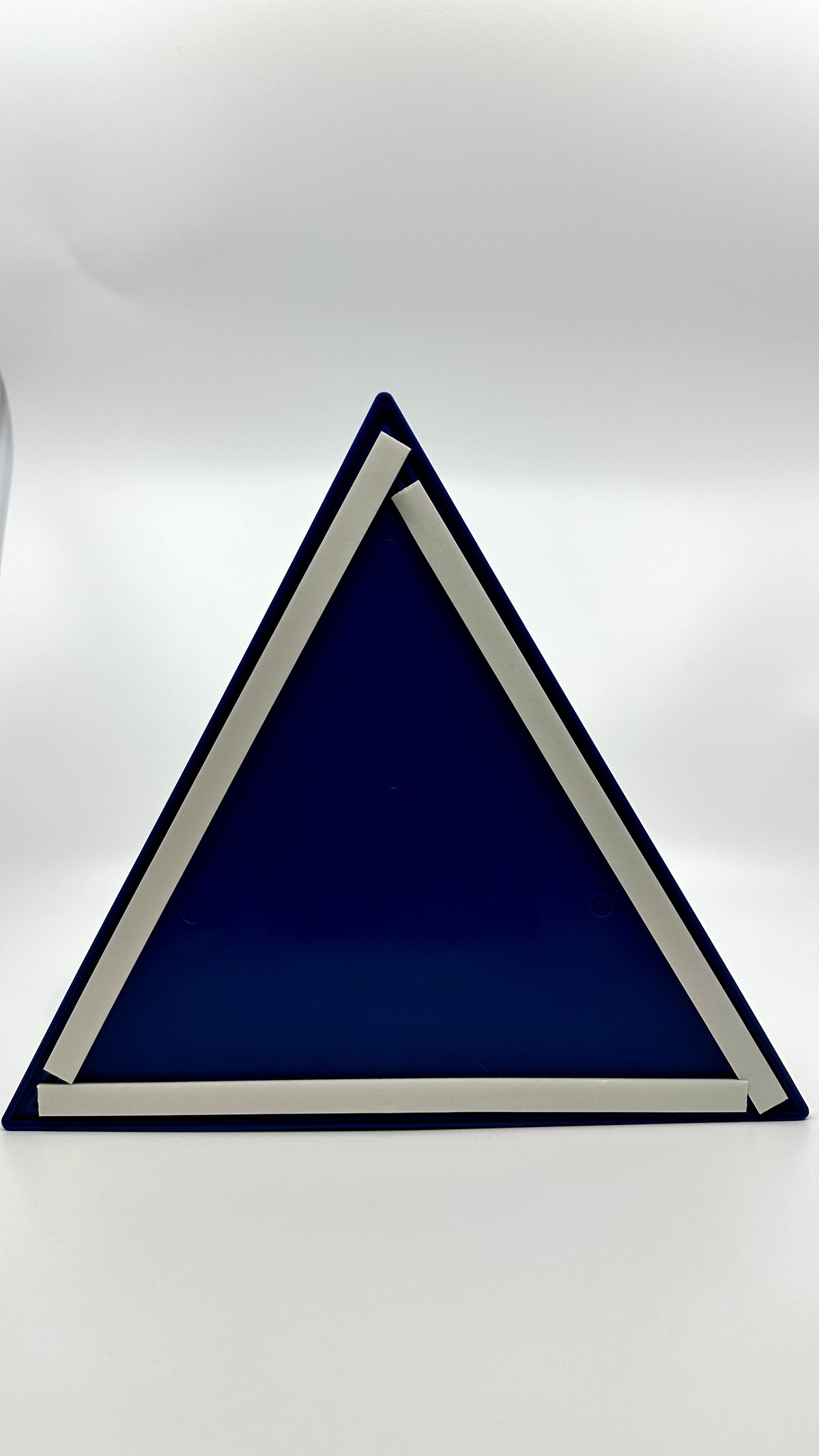

• Mounting: high-bond double-sided tape on both signs
• Standards: built to the 2010 ADA Standards (Section 703) and CBC Chapter 11B (Sections 11B-216.8 and 11B-703.7.2.6)
• SKUs: MRRS69U, MRRS69K, MRRS69W, MRRS69S, MRRS69WH

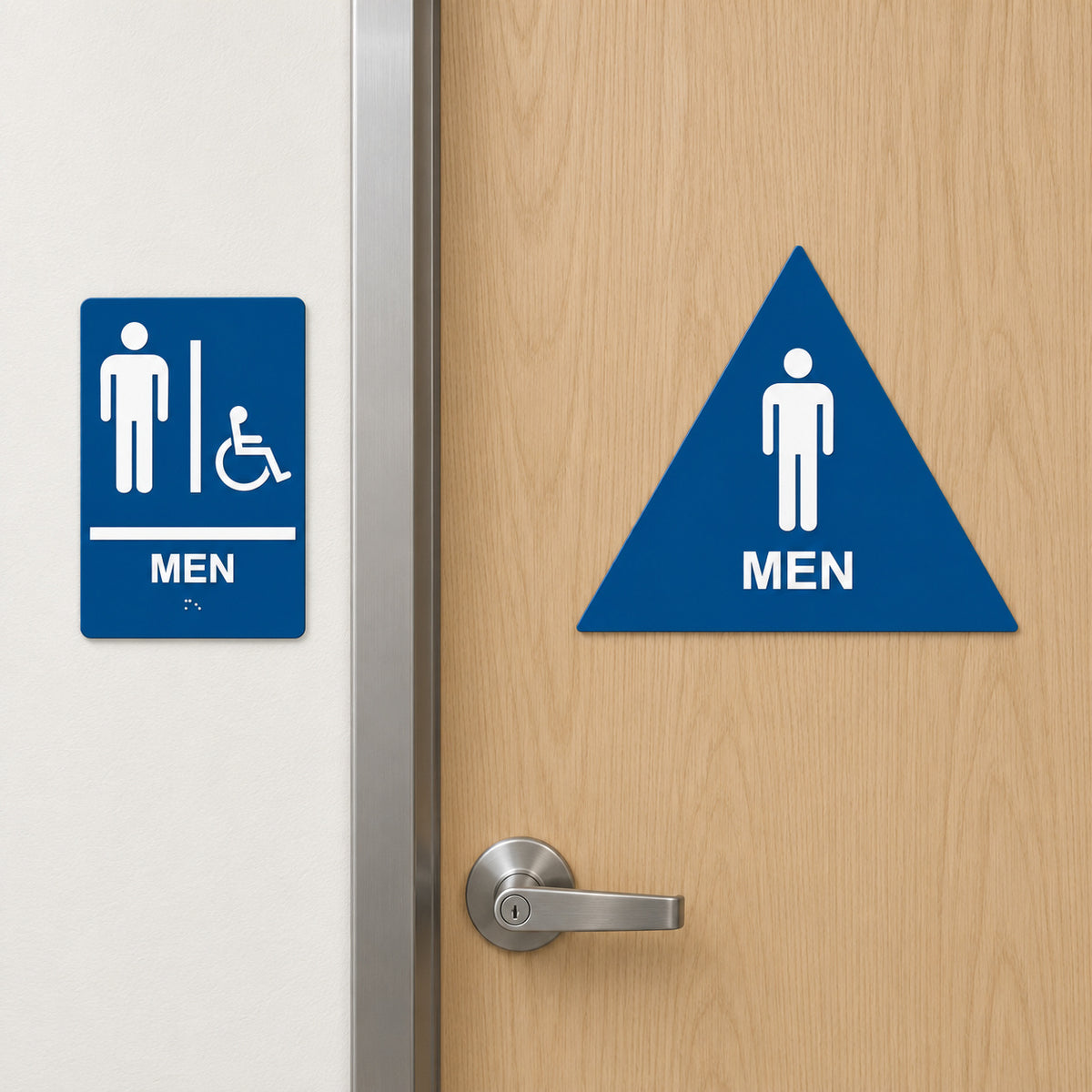

Installation: Door sign: center it on the door within 1" of the vertical centerline, with its center 58" to 60" above the finished floor. Wall sign: mount on the wall beside the door, on the latch side, with the tactile text between 48" and 60" above the finished floor and an 18" x 18" clear floor space in front of it.

Note: The door symbol does not need Braille. The wall sign carries the tactile text and Braille.

SignOptima® designs and manufactures ADA compliant, architectural and commercial signs in Anaheim, California.

Need bulk orders or custom colors? Contact us for volume pricing and design help.
