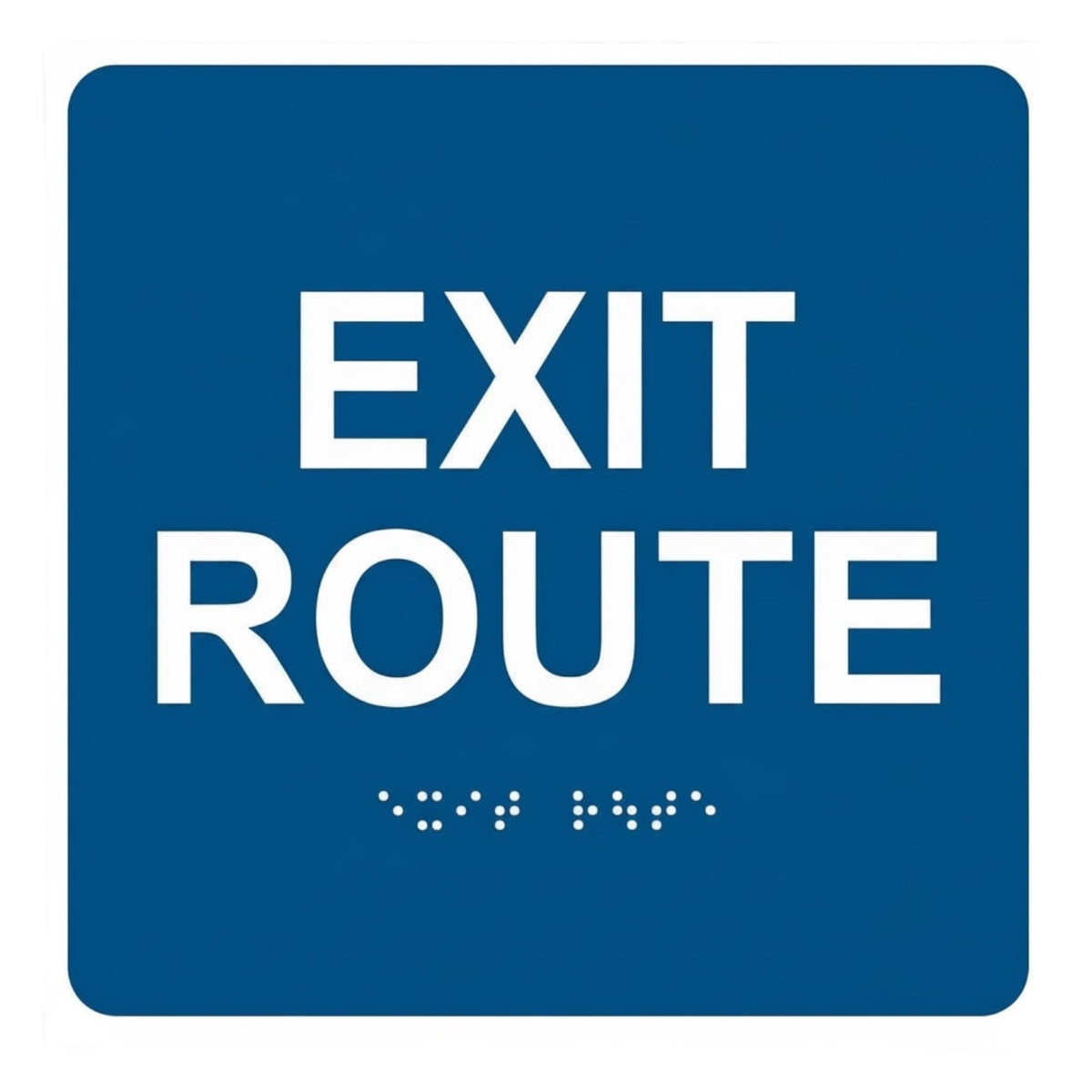

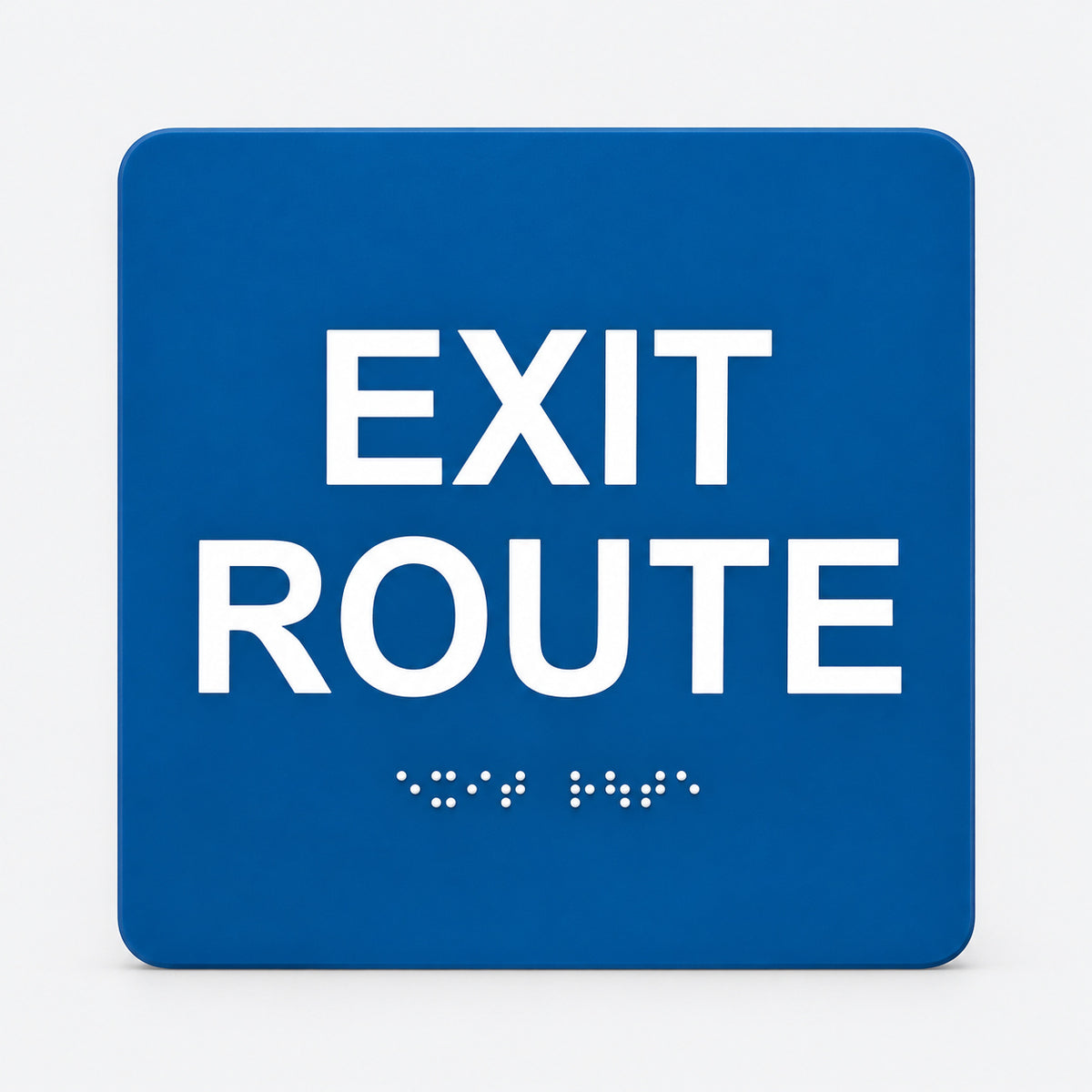

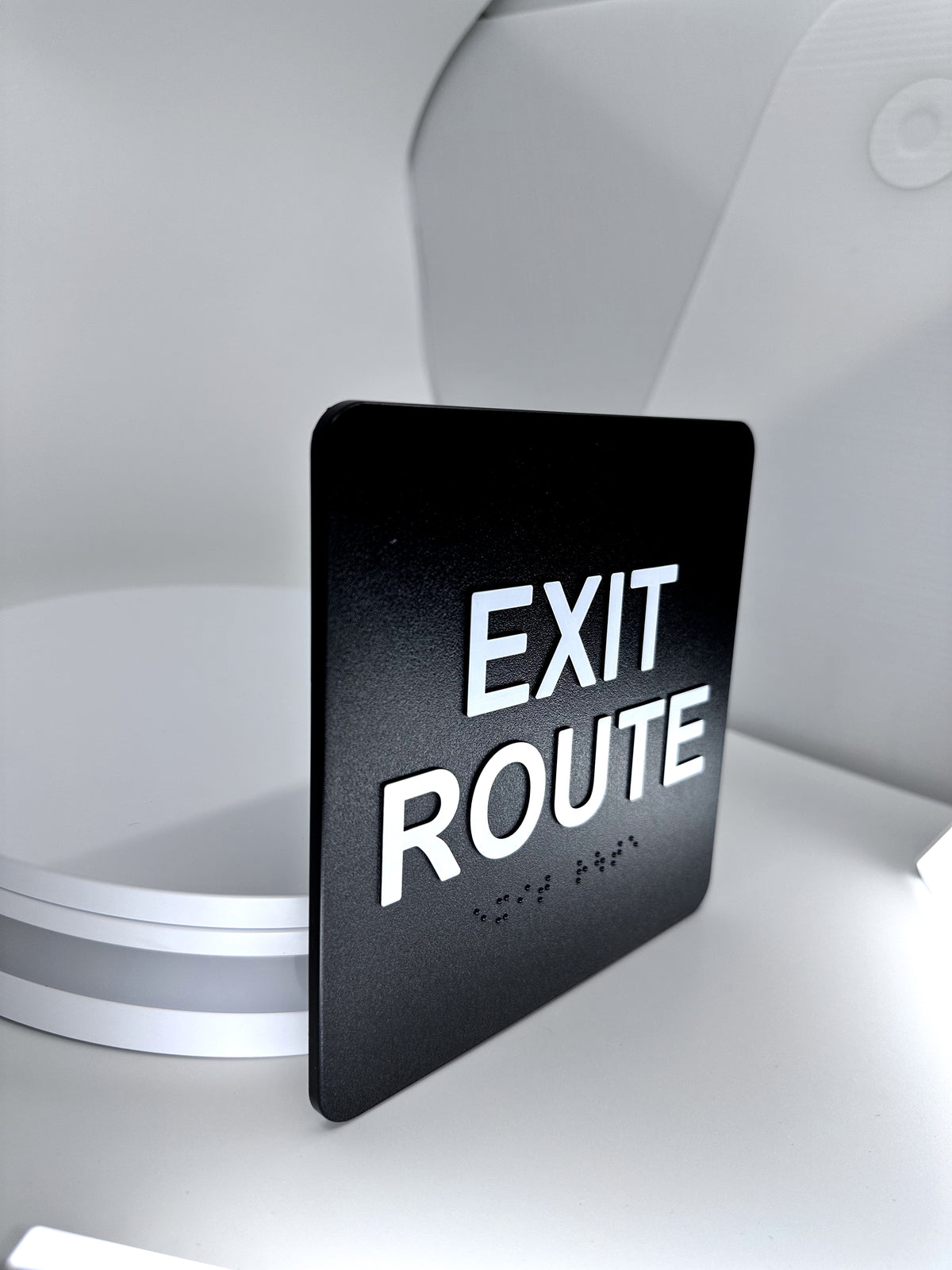

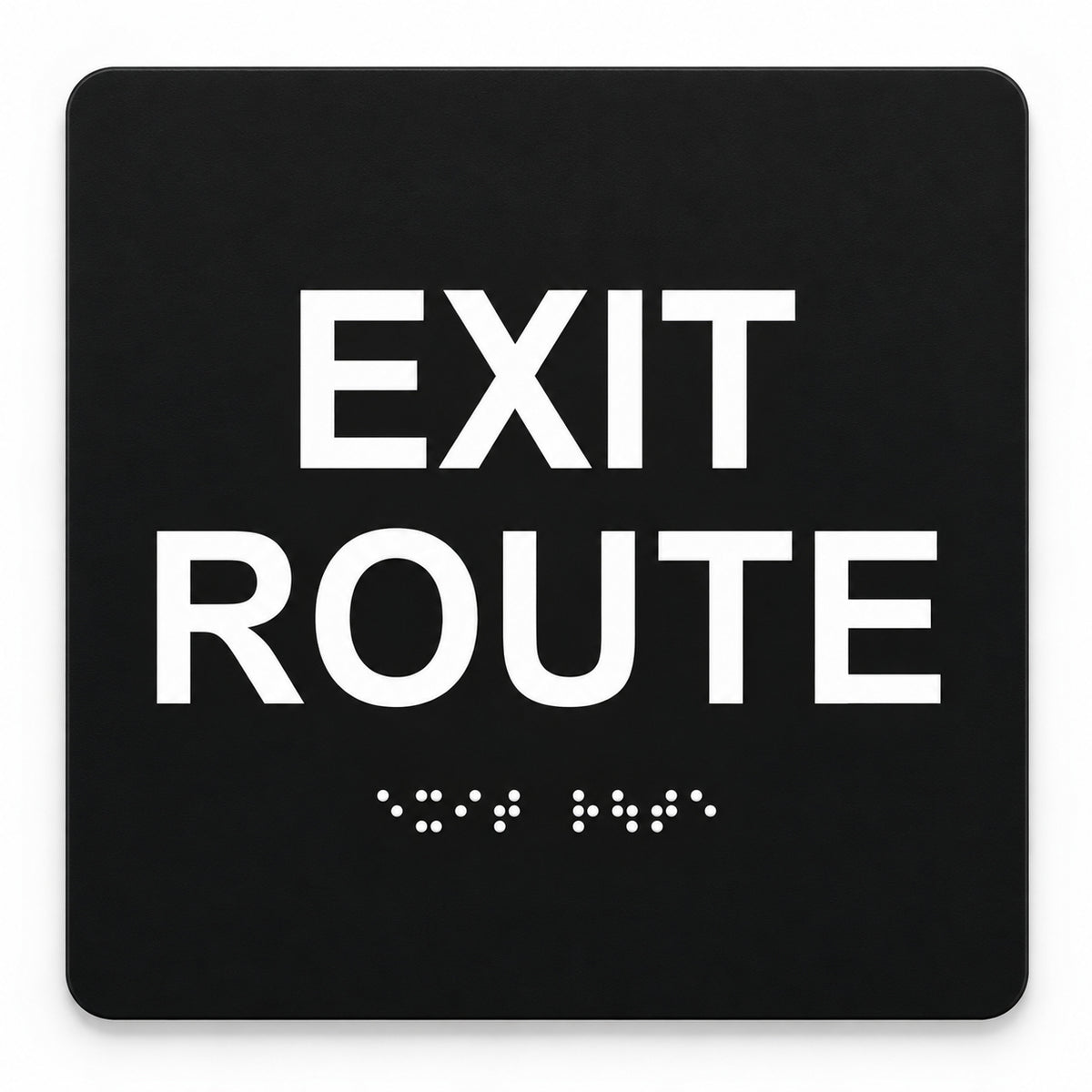

ADA Compliant Exit Route Sign – 6"x6" Tactile with Braille

Install this ADA and California Title 24 compliant EXIT ROUTE sign on the wall beside doors that lead to an exit passageway. California (CBC 11B-216.4.1) and the IBC (Section 1013.4) require tactile exit signs at these doors, with raised letters and Grade 2 Braille.

Product Features:

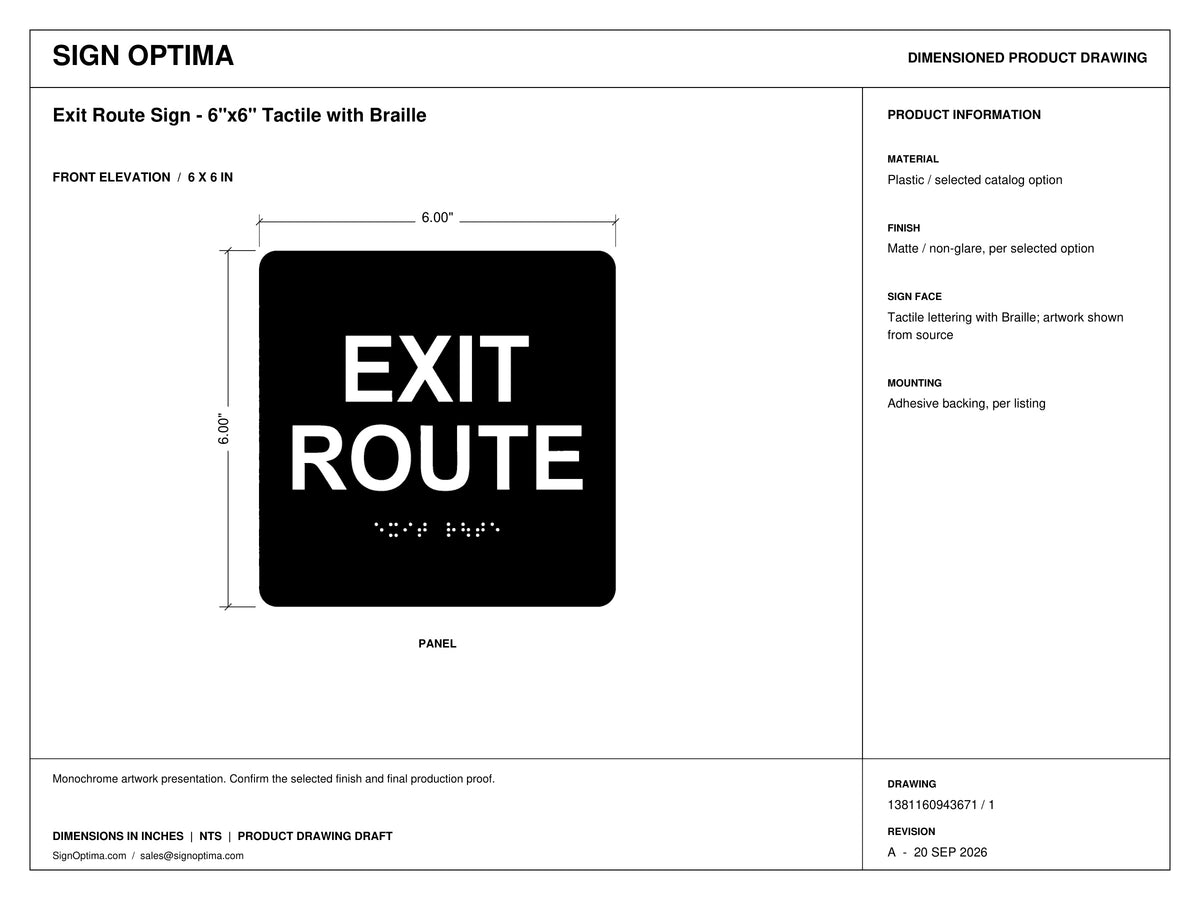

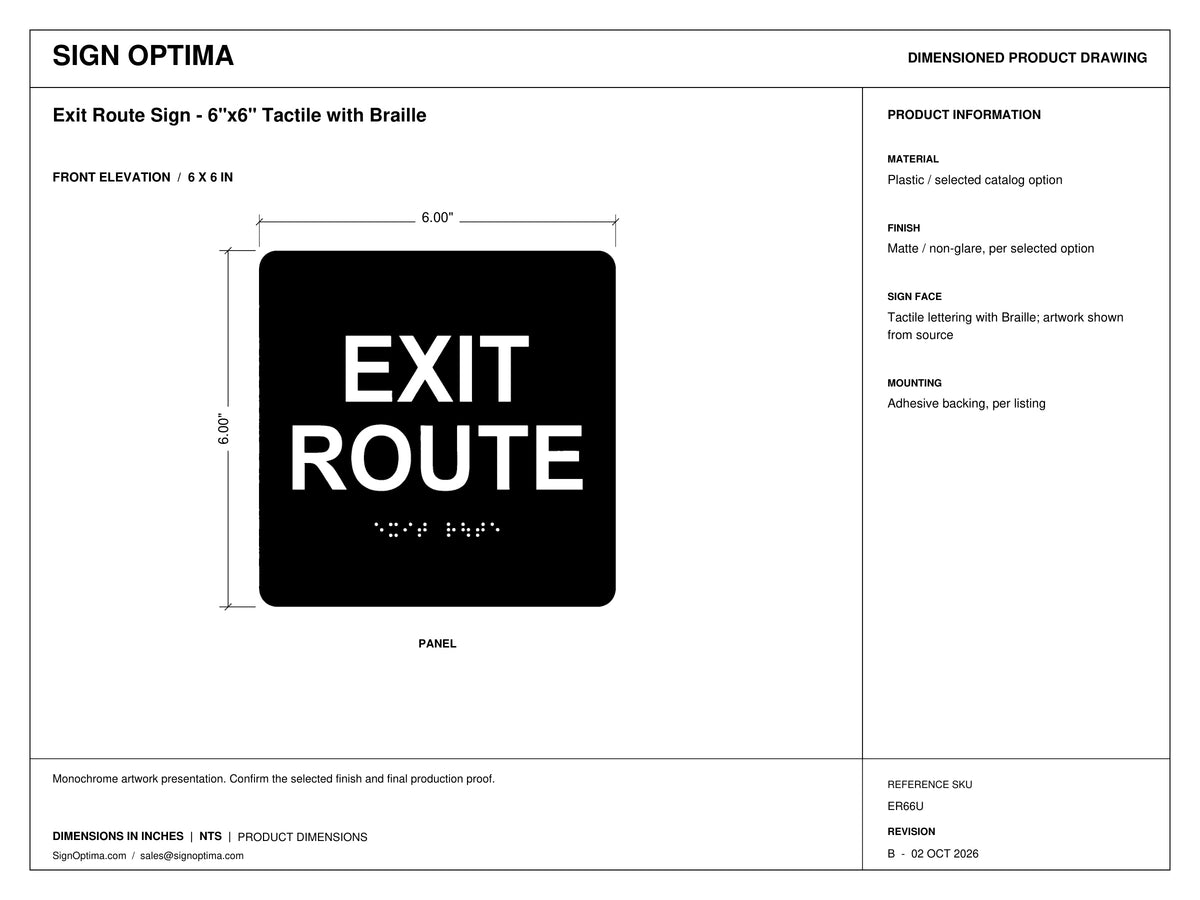

• Size: 6" x 6"

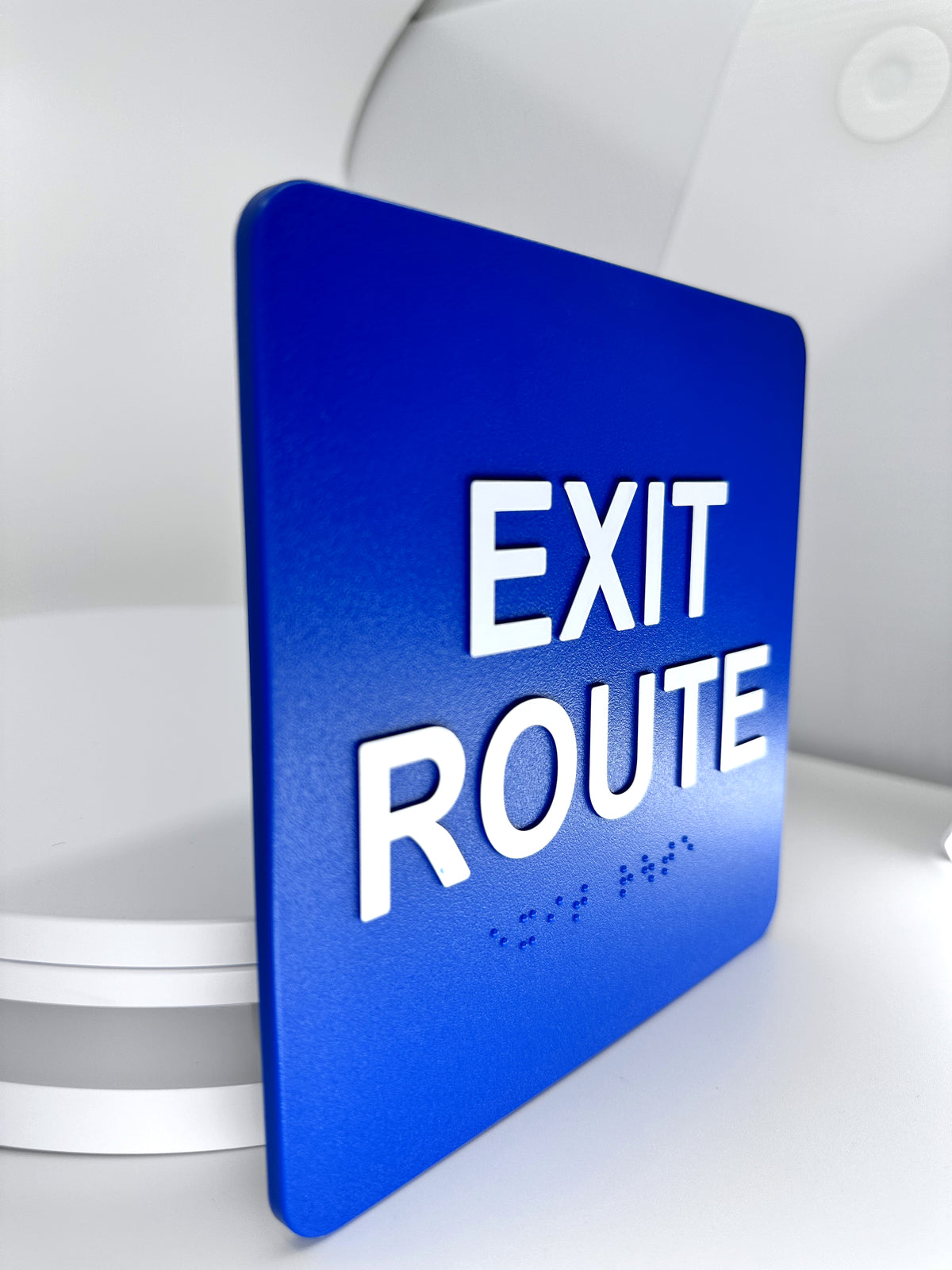

• Text: "EXIT ROUTE" in 1/32" raised uppercase sans-serif letters
• Braille: Grade 2, below the text
• Thickness: 1/8"
• Finish: matte, non-glare, with high-contrast letters

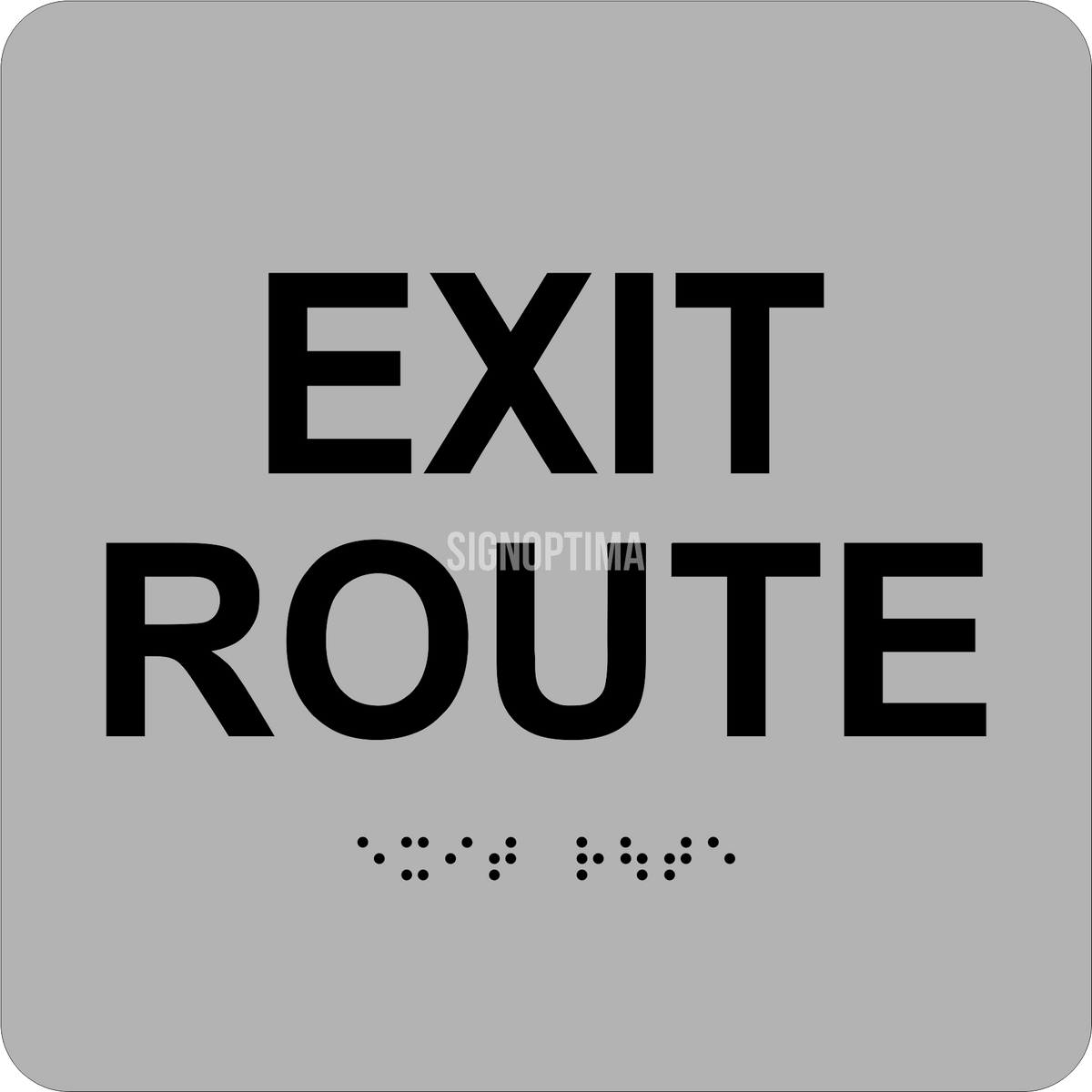

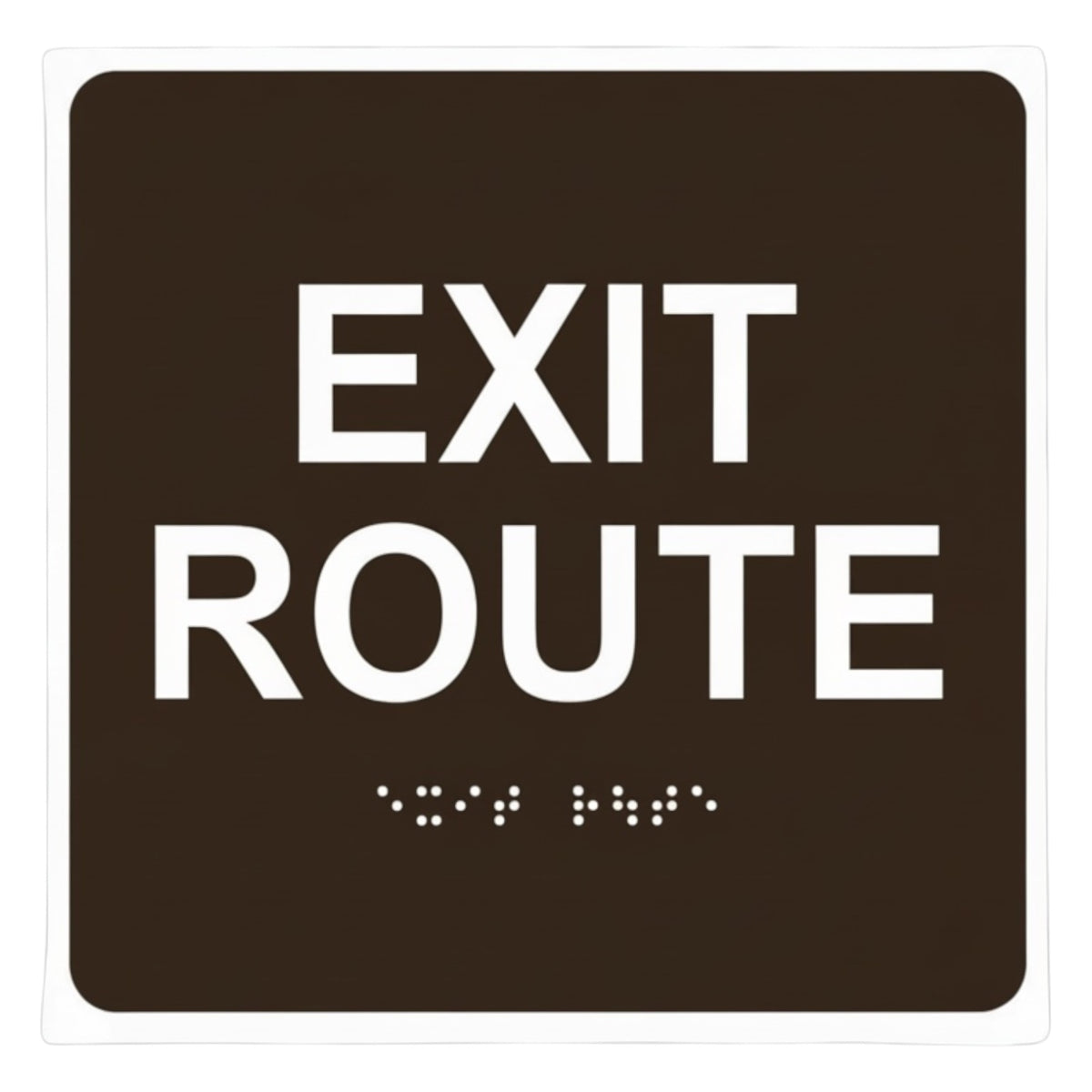

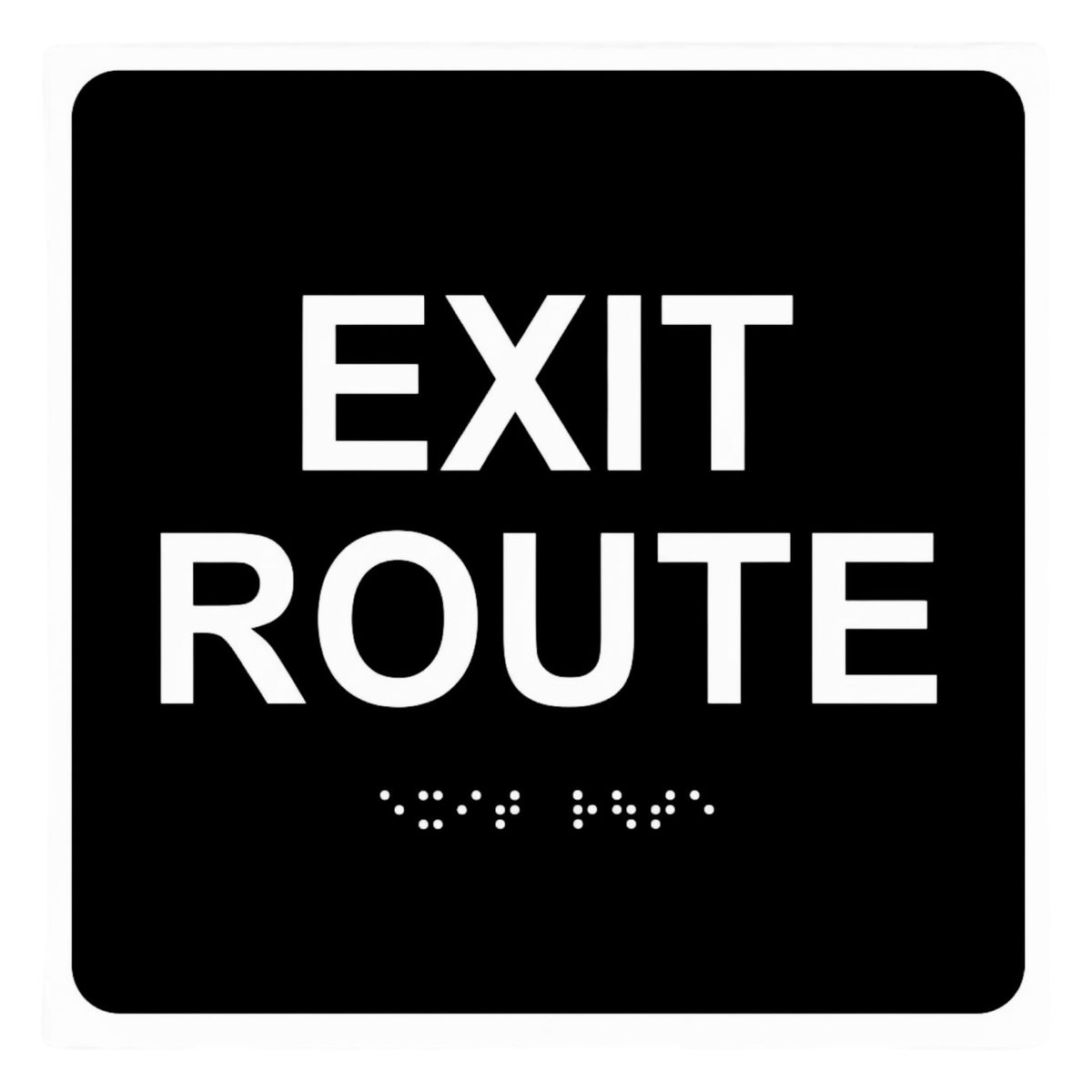

• Colors: Black, Blue, Brown, Gray
• Mounting: high-bond double-sided tape
• Standards: built to the 2010 ADA Standards (Section 703) and CBC Chapter 11B
• SKUs: ER66K, ER66U, ER66W, ER66S

Installation: Mount on the wall beside the door, on the latch side. Place the tactile text between 48" and 60" above the finished floor, with an 18" x 18" clear floor space in front of the sign, outside the door swing.

Note: Use EXIT for doors that lead directly outside, and EXIT STAIR DOWN or UP for doors into an exit stairway.

SignOptima® designs and manufactures ADA compliant, architectural and commercial signs in Anaheim, California.

Need bulk orders or custom colors? Contact us for volume pricing and design help.
