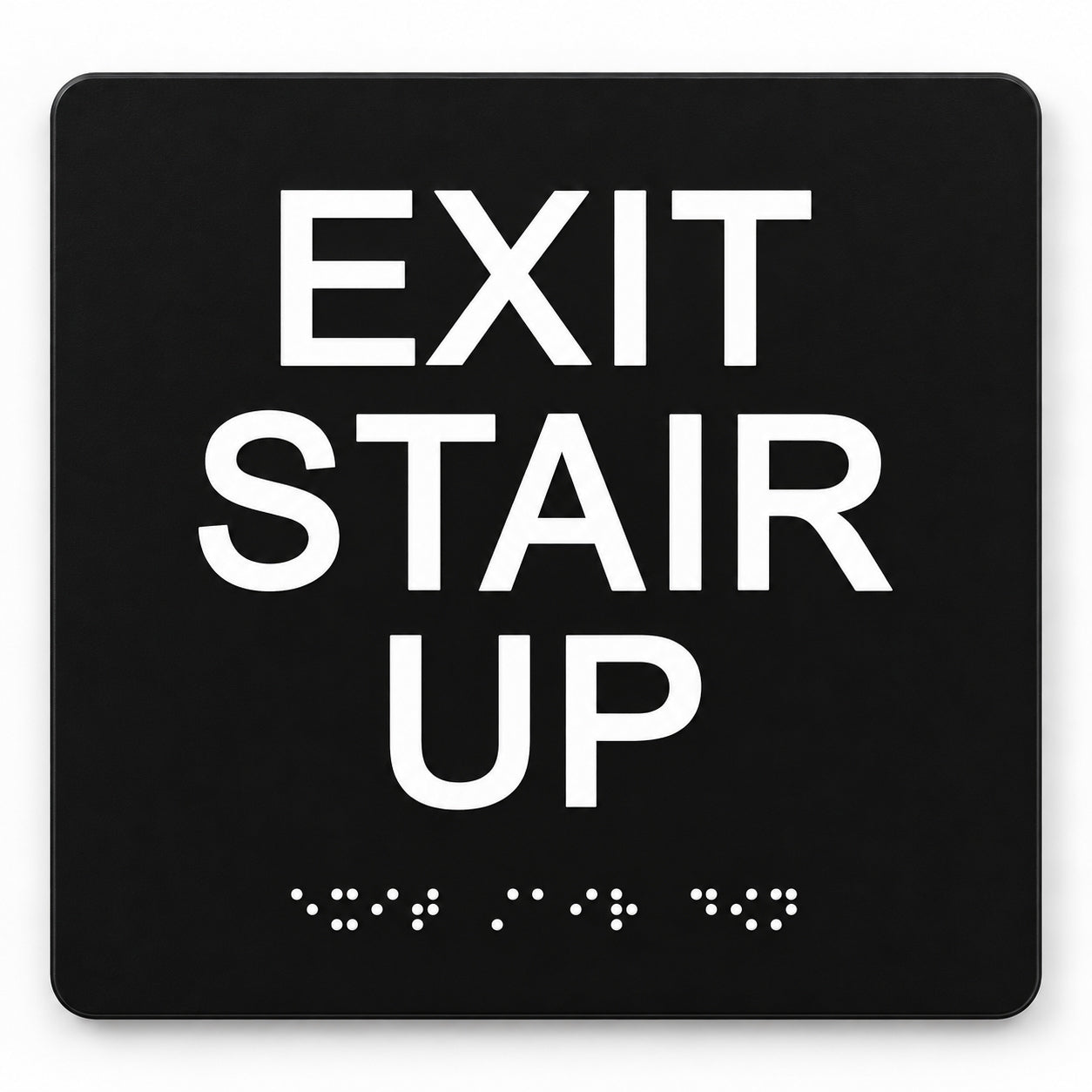

EXIT STAIR UP sign, 6 x 6 inch, black, with raised letters and Grade 2 Braille
EXIT STAIR UP sign, 6 x 6 inch, black, with raised letters and Grade 2 Braille
EXIT STAIR UP sign, 6 x 6 inch, blue, with raised letters and Grade 2 Braille
EXIT STAIR UP sign, 6 x 6 inch, brown, with raised letters and Grade 2 Braille

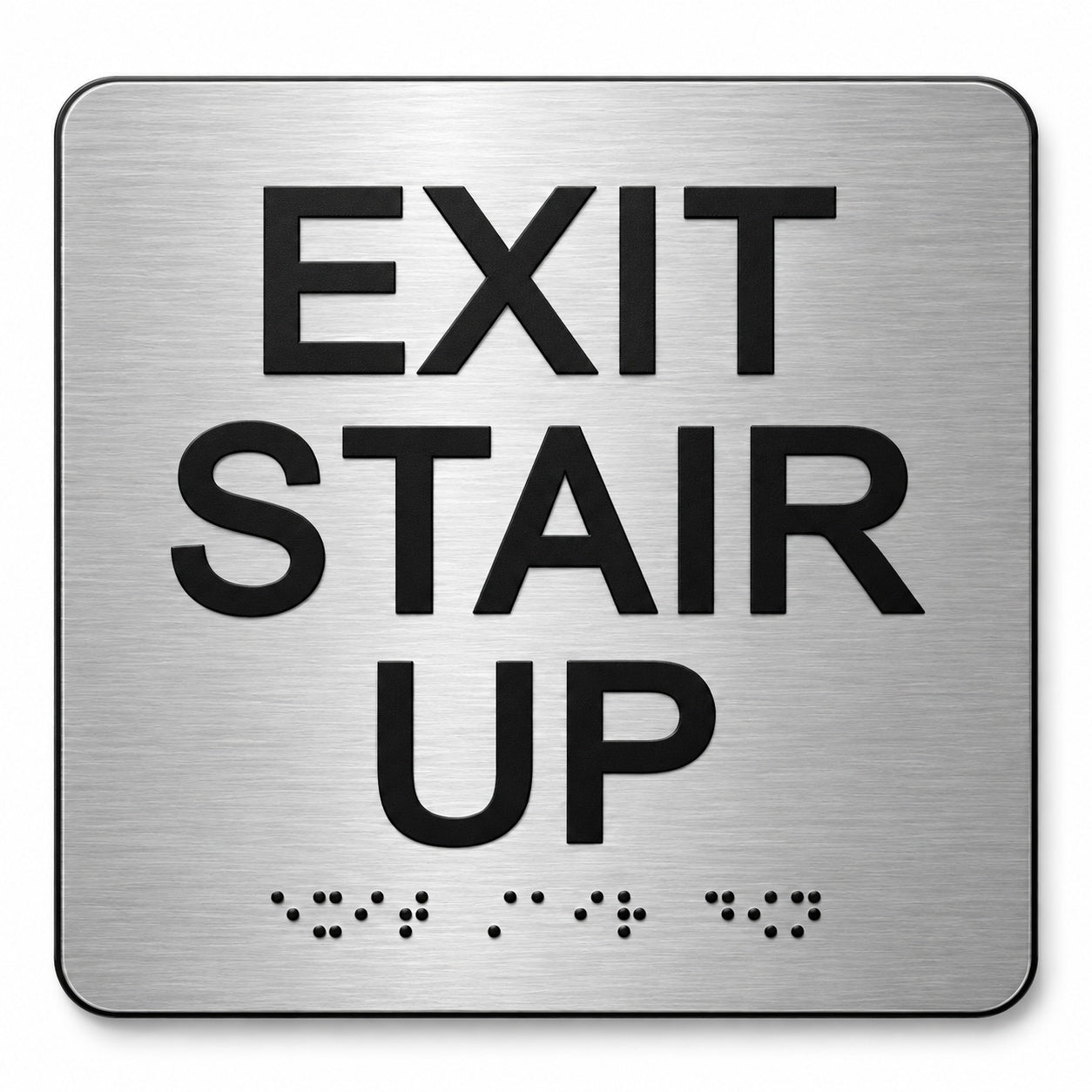

EXIT STAIR UP sign, 6 x 6 inch, silver, with raised letters and Grade 2 Braille
Technical drawing of the 6 x 6 inch EXIT STAIR UP sign: front and side views, 1/8 inch thick, 1/32 inch raised letters, Grade 2 Braille and mounting height
Dimension drawing of the EXIT STAIR UP sign, 6 x 6 inch, with measurements

ADA Compliant Exit Stair Up Sign – 6"x6" Tactile with Braille

  • Save $6

Mark doors into an exit stairway with this ADA and California Title 24 compliant EXIT STAIR UP sign, with raised tactile letters and Grade 2 Braille. Use it where the exit discharge is above the floor level, as required by CBC 11B-216.4.1 and IBC Section 1013.4.

Product Features:

  • Size: 6" x 6"
  • Text: "EXIT STAIR UP" in 1/32" raised uppercase sans-serif letters
  • Braille: Grade 2, below the text
  • Thickness: 1/8" acrylic
  • Finish: matte, non-glare, with high-contrast letters
  • Colors: Black, Blue, Brown, Silver, Brushed Aluminum
  • Mounting: high-bond double-sided tape
  • Standards: built to the 2010 ADA Standards (Section 703) and CBC Chapter 11B
  • SKUs: ESU-0606-BLK, ESU-0606-BLU, ESU-0606-BRN, ESU-0606-SLV, ESU-0606-BRUSH

Installation: Mount on the wall beside the door, on the latch side. Place the tactile text between 48" and 60" above the finished floor, with an 18" x 18" clear floor space in front of the sign, outside the door swing.

Note: Brushed Aluminum is made to order, with a brushed-silver face and black lettering. Where the exit discharge is below the floor level, use EXIT STAIR DOWN instead.

SignOptima® designs and manufactures ADA compliant, architectural and commercial signs in Anaheim, California.

Need bulk orders or custom colors? Contact us for volume pricing and design help.
