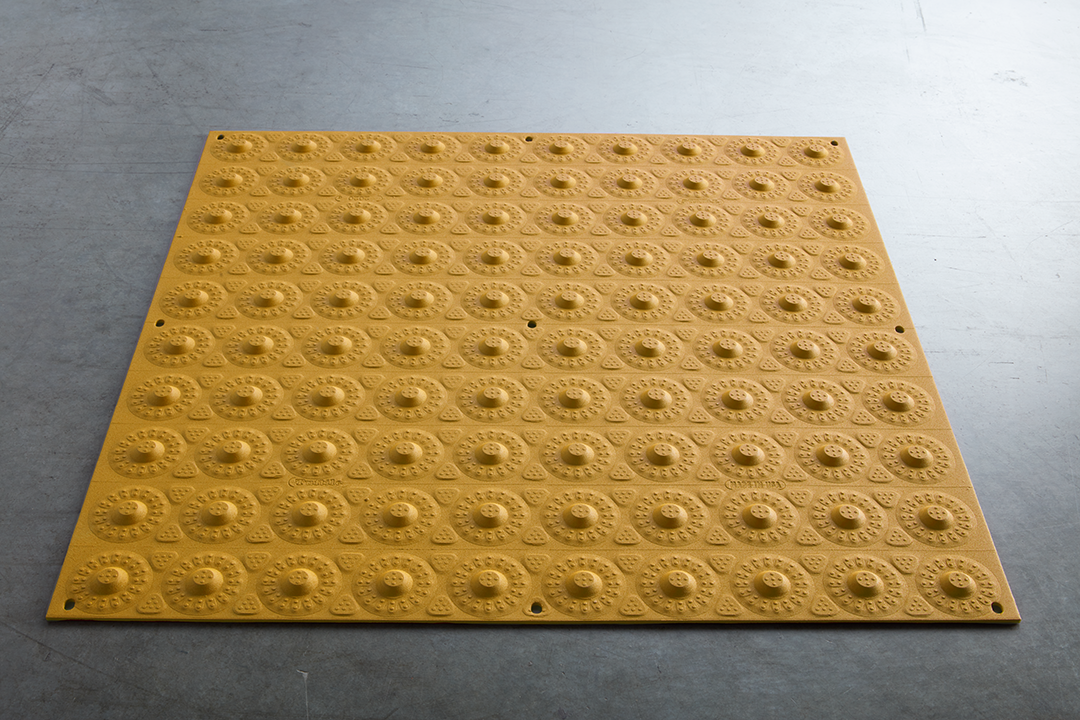

ADA Compliant Tuftile Detectable Warning Tile - Surface Applied
Truncated Dome Warning Tiles ensures pedestrian safety and regulatory compliance with ADA Compliant , available in both Galvanized Steel and Polymer Surface-Applied models. Engineered for public rights-of-way, curb ramps, transit platforms, and high-traffic pedestrian zones, these tiles meet all ADA Accessibility Guidelines (ADAAG) and are approved for California Department of Transportation ,DOT, use.
Available Material Options:
1. Galvanized Steel – Surface Applied
Built for heavy-duty, high-traffic areas, and city sidewalks.
Key Features:
-
Durable G90 guardrail-grade galvanized steel
-
0.2" raised truncated domes, ADA-compliant geometry and spacing
-
Superior slip resistance: Dry 0.90 / Wet 0.81
-

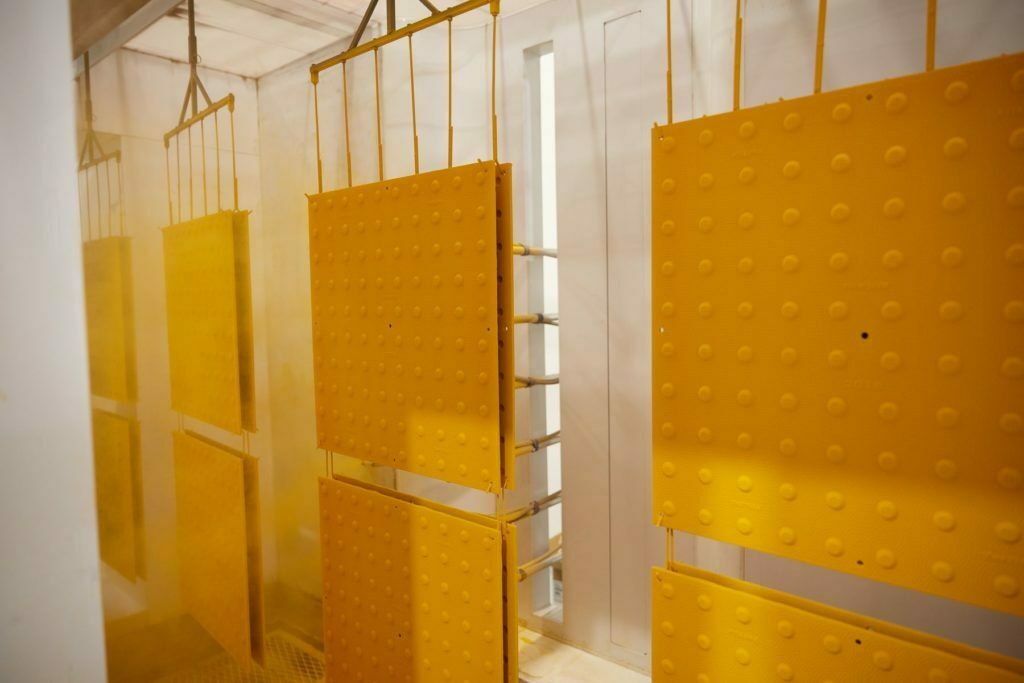

Powder-coated UV-protected surface for color longevity
-
Available in multiple sizes and custom radius curves
-
10-year manufacturer warranty
-
Buy America Act Certified
-

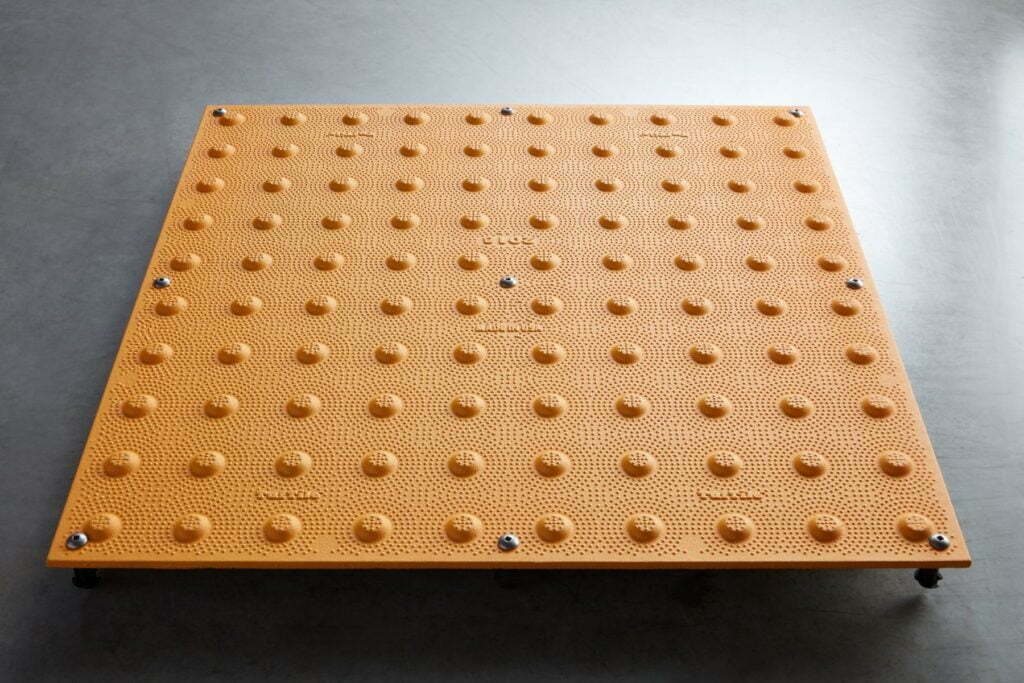

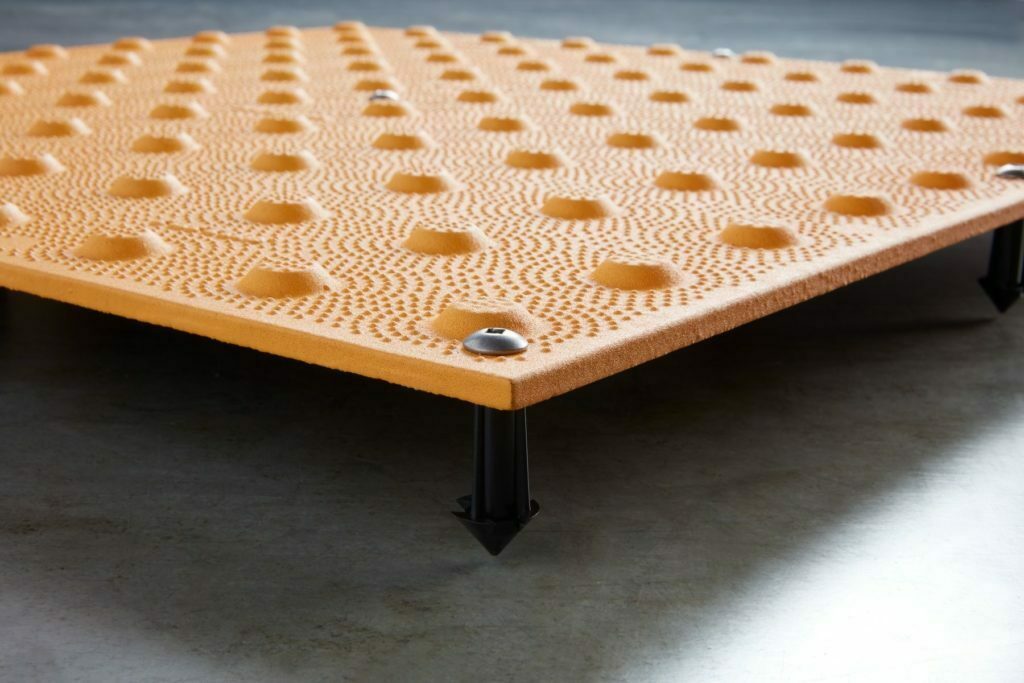

Easy installation with stainless steel drive pins and approved sealant
2. Polymer - Surface Applied
Lightweight and high-performance, suitable for fast installs in pedestrian and commercial zones.
Key Features:
-
Engineered thermoplastic with homogenous color throughout
-
Low-profile beveled edges for smooth transition
-
Excellent abrasion, water, and chemical resistance
-
Slip resistance: Dry 1.28 / Wet 1.23
-
5-year limited warranty
-
Available in 5 standard sizes and 20+ radius options
-
Non-hazardous and Buy America Compliant
Specifications Overview
-
ADA R305.1.1 compliant dome geometry
-
Dome height: 0.2” | Base diameter: 0.9”
-

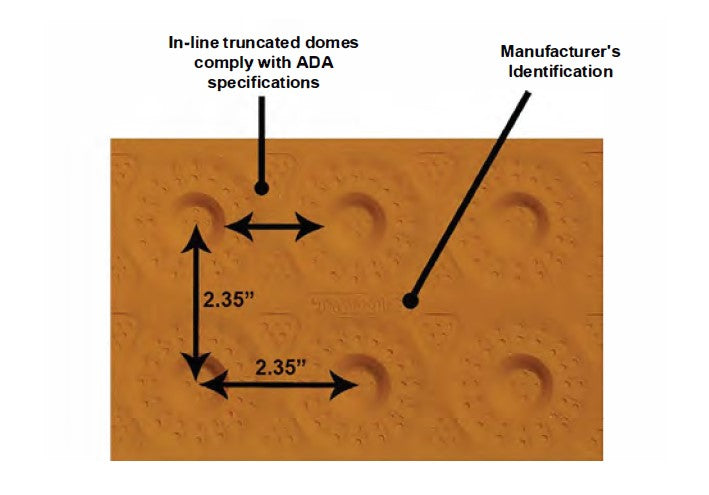

Dome spacing: 2.35” center-to-center
-
Surface-applied installation method
-

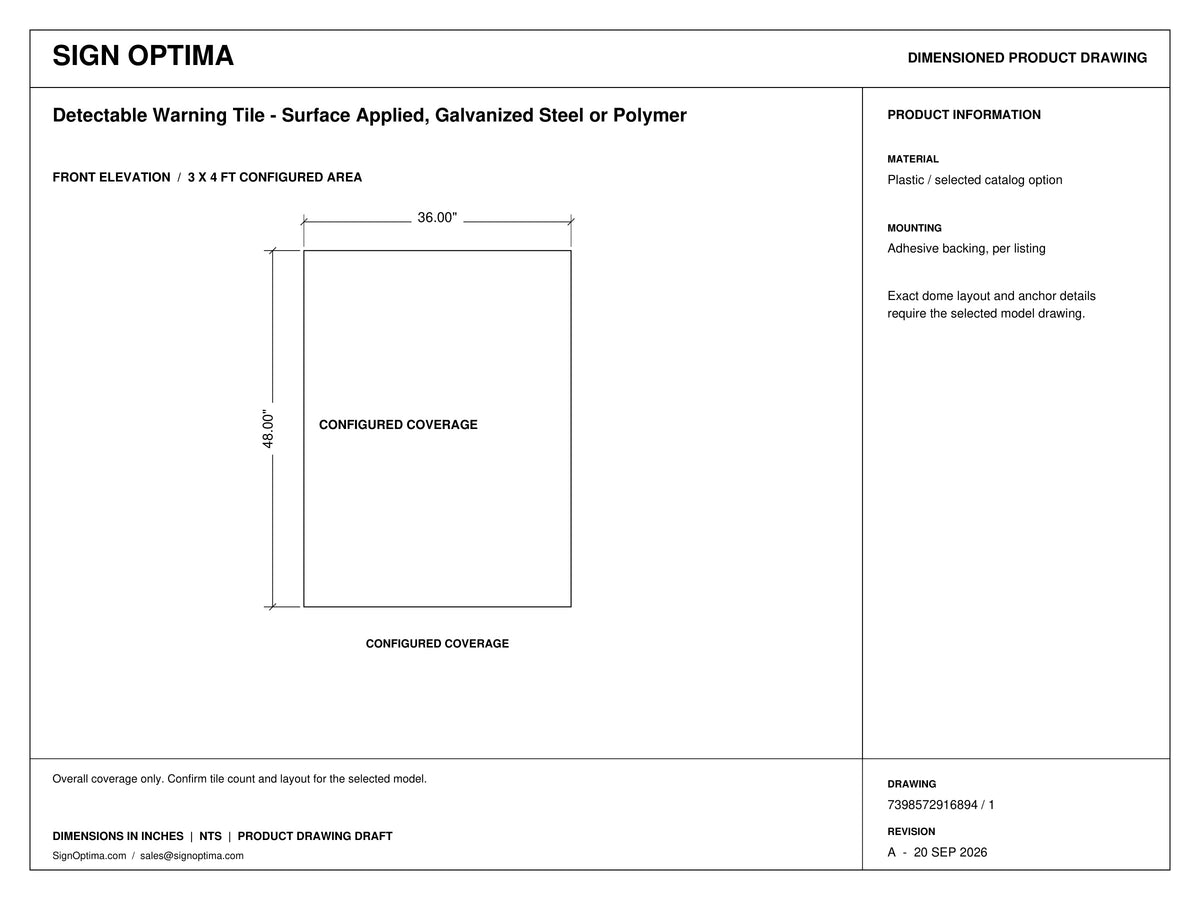

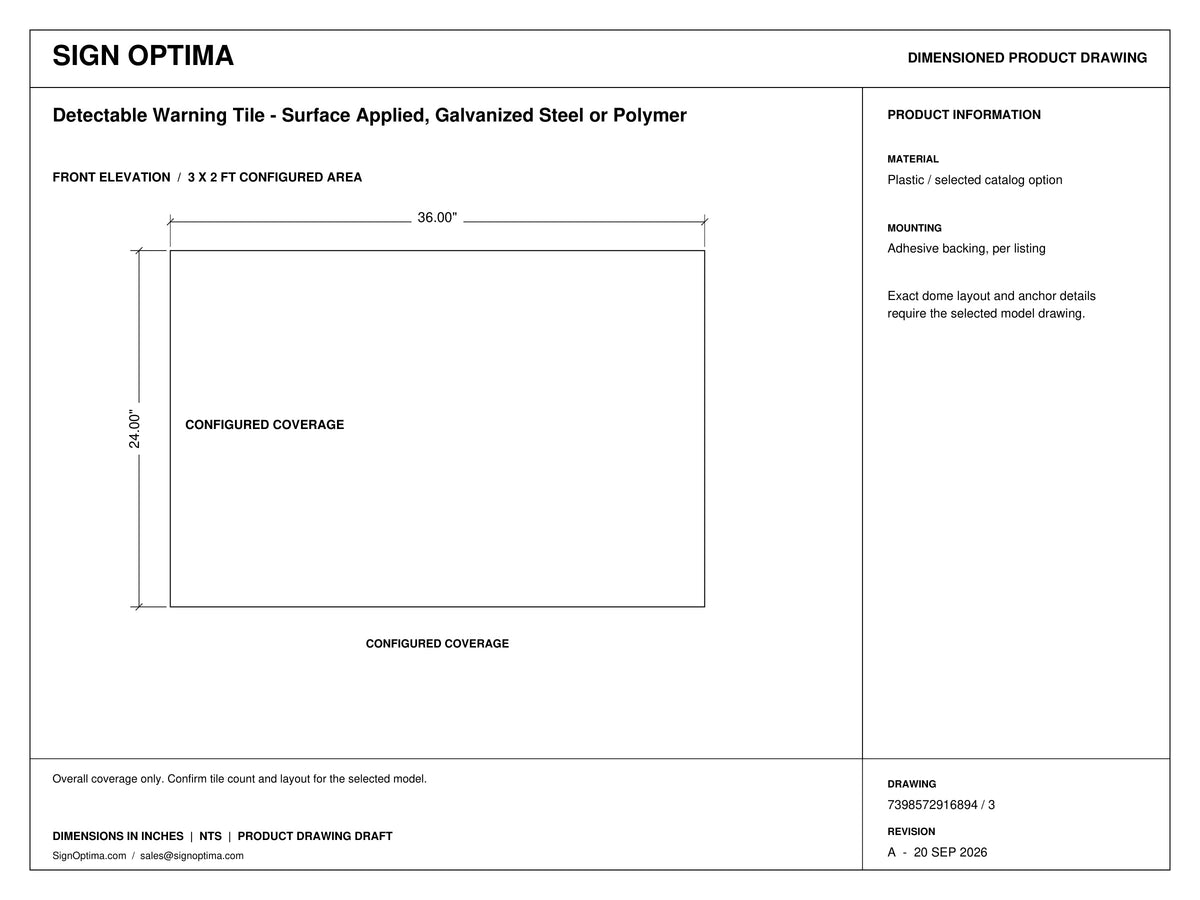

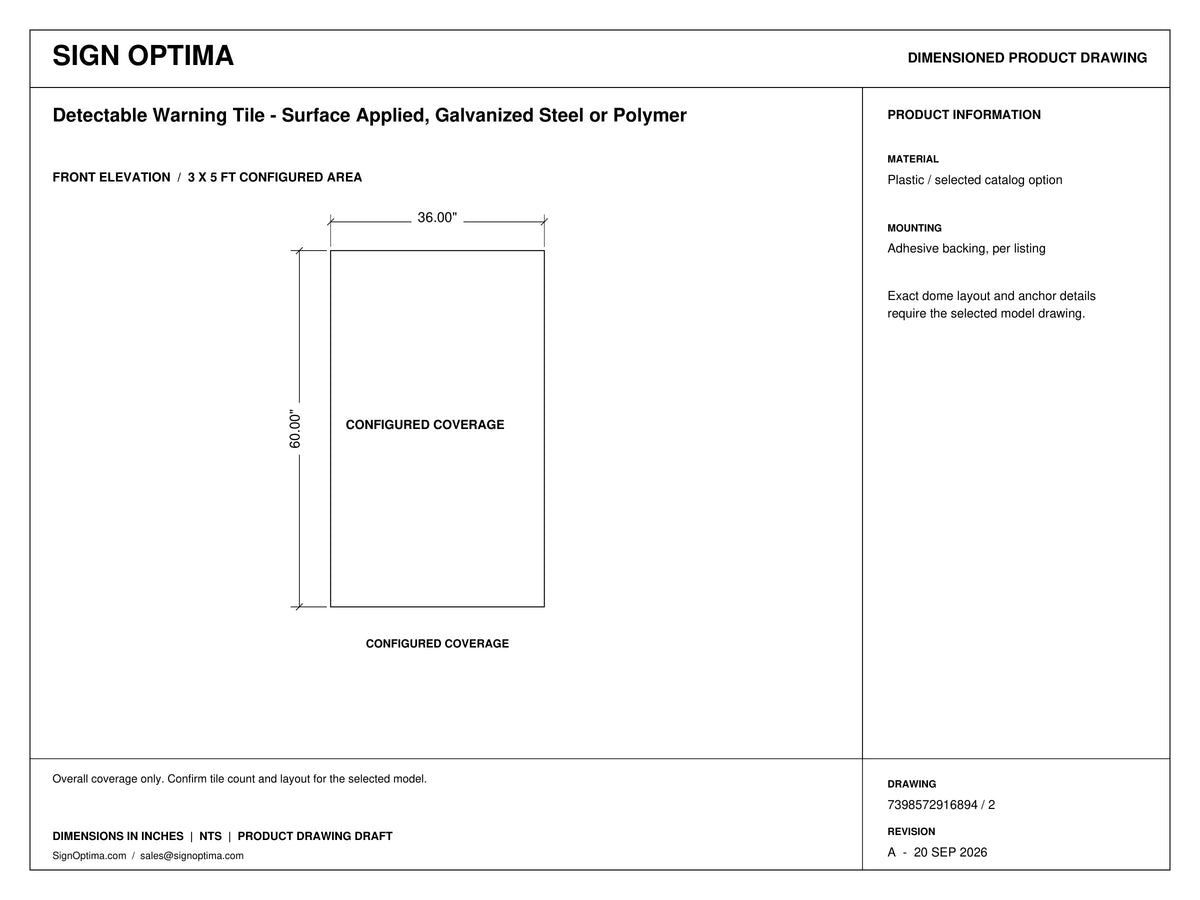

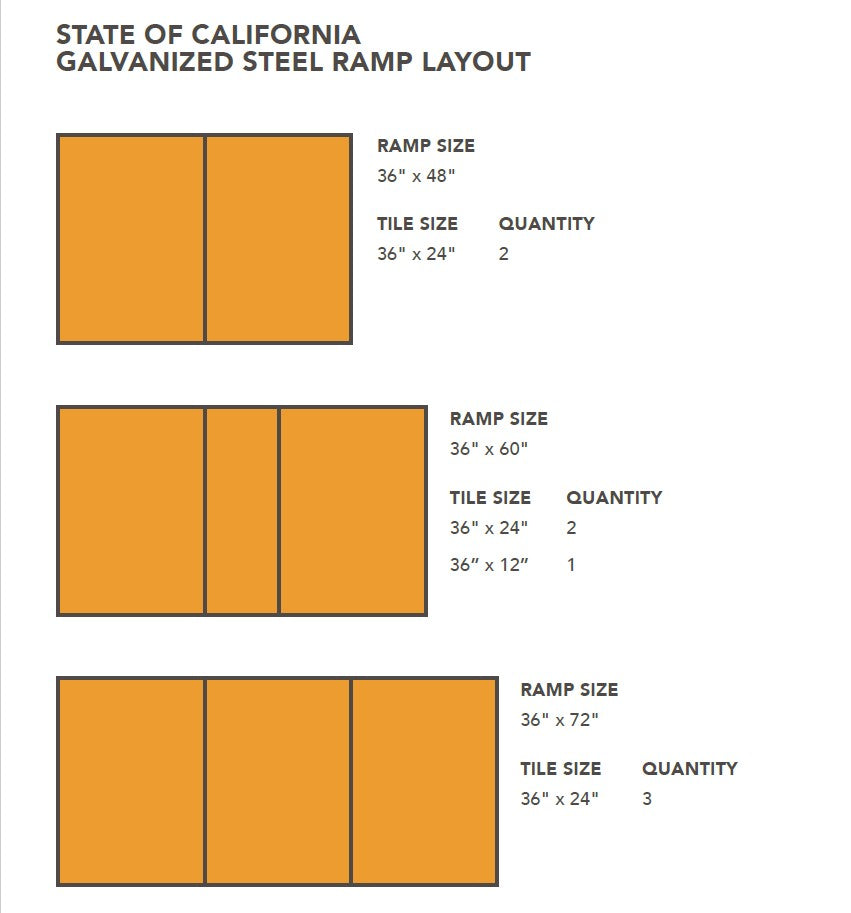

Multiple tile sizes and curve/radius layouts available
ADA COMPLIANT Complies with ADA Accessibility Guidelines (ADAAG) for Public
Rights-Of-Way (July 26, 2011). Meets Buy America Act 23
C.F.R. § 635.410.
SURFACE APPLIED is used to retrofit existing concrete at least 30 days old. It is a cost effective system that includes adhesive and fasteners.
Detectable/Tactile Warning Surface Tiles shall be guaranteed in writing for a period of five (5) years from date of final completion. The guarantee includes defective work, breakage, deformation, fading and loosening of tiles.
Installation guide and submittal package :
Surface Applied : https://signoptima.com/pages/installation-manual-ada-truncated-dome-pad-surface-applied
