ADA Compliant Exit Ramp Up Sign – 6"x6" Tactile with Braille

Mark doors to an exit ramp with this ADA and California Title 24 compliant EXIT RAMP UP sign, with raised tactile letters and Grade 2 Braille. Use it where the ramp leads up to the exit discharge (CBC 11B-216.4.1, IBC Section 1013.4).

Product Features:

• Size: 6" x 6"
• Text: "EXIT RAMP UP" in 1/32" raised uppercase sans-serif letters
• Braille: Grade 2, below the text
• Thickness: 1/8" acrylic
• Finish: matte, non-glare, with high-contrast letters
• Colors: Black, Blue, Brown, Silver, Red, Brushed Aluminum
• Mounting: high-bond double-sided tape
• Standards: built to the 2010 ADA Standards (Section 703) and CBC Chapter 11B
• SKUs: ERU-0606-BLK, ERU-0606-BLU, ERU-0606-BRN, ERU-0606-SLV, ERU-0606-RED, ERU-0606-BRUSH

Installation: Mount on the wall beside the door, on the latch side. Place the tactile text between 48" and 60" above the finished floor, with an 18" x 18" clear floor space in front of the sign, outside the door swing.

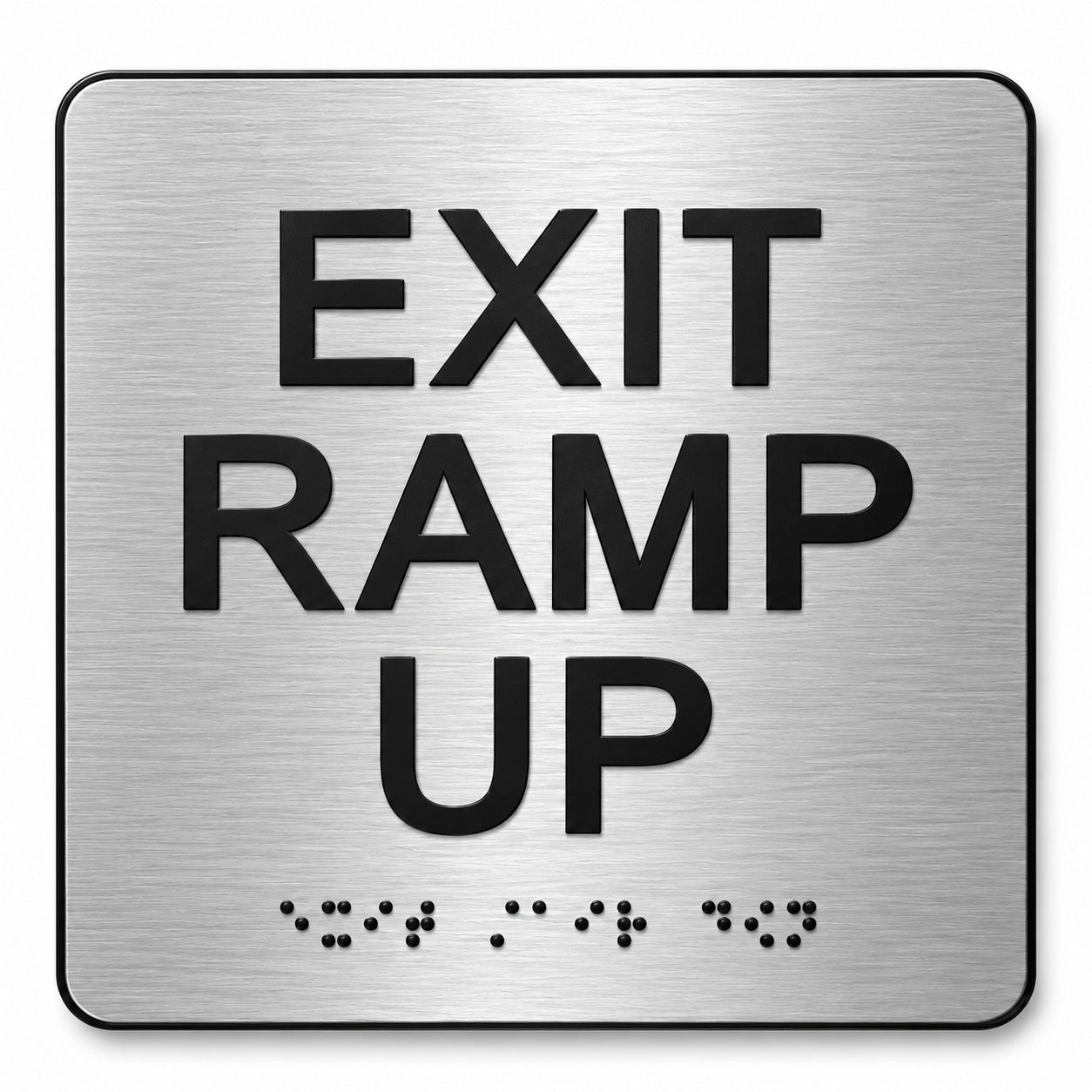

Note: Brushed Aluminum is made to order, with a brushed-silver face and black lettering. Where the ramp leads down to the exit discharge, use EXIT RAMP DOWN instead.

SignOptima® designs and manufactures ADA compliant, architectural and commercial signs in Anaheim, California.

Need bulk orders or custom colors? Contact us for volume pricing and design help.
