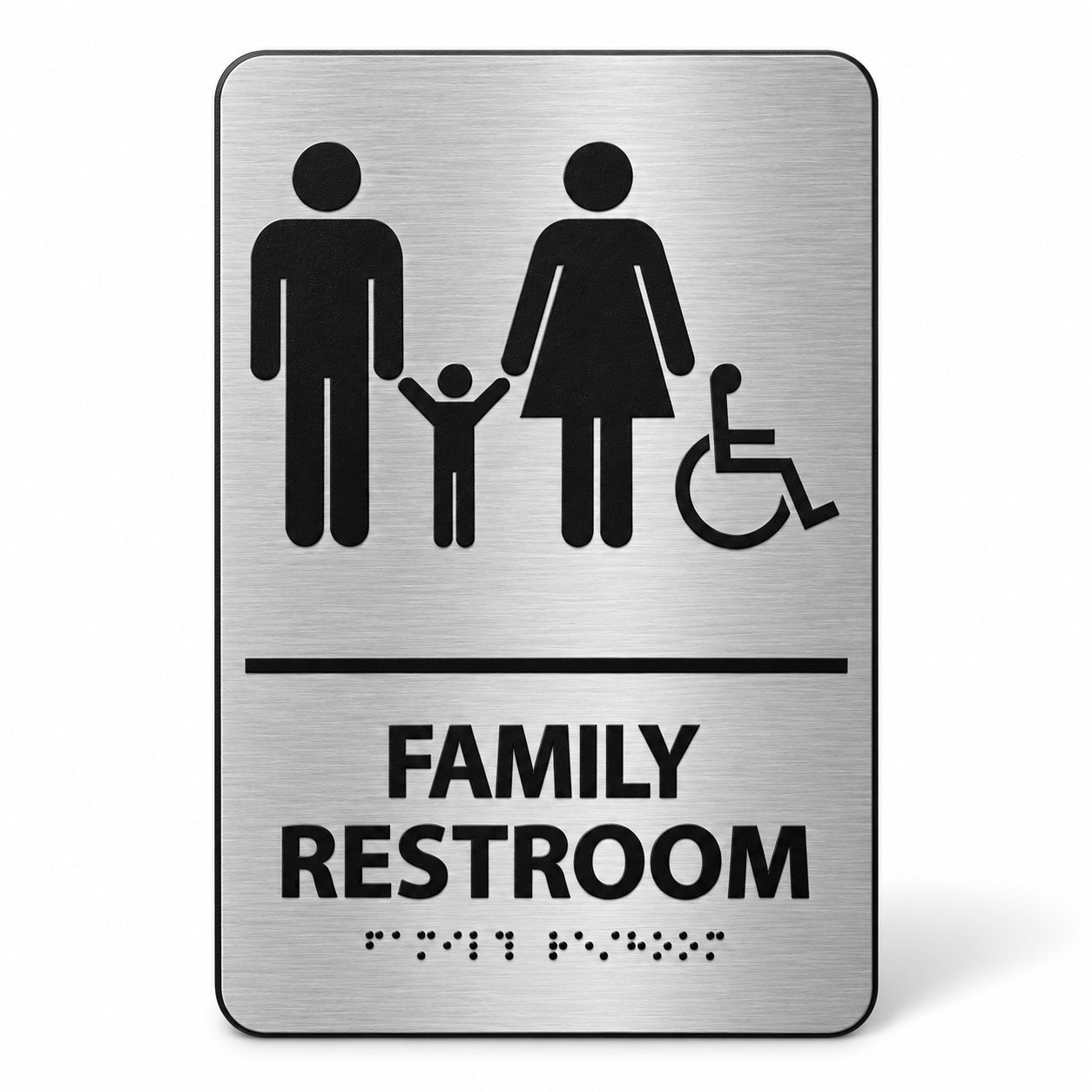

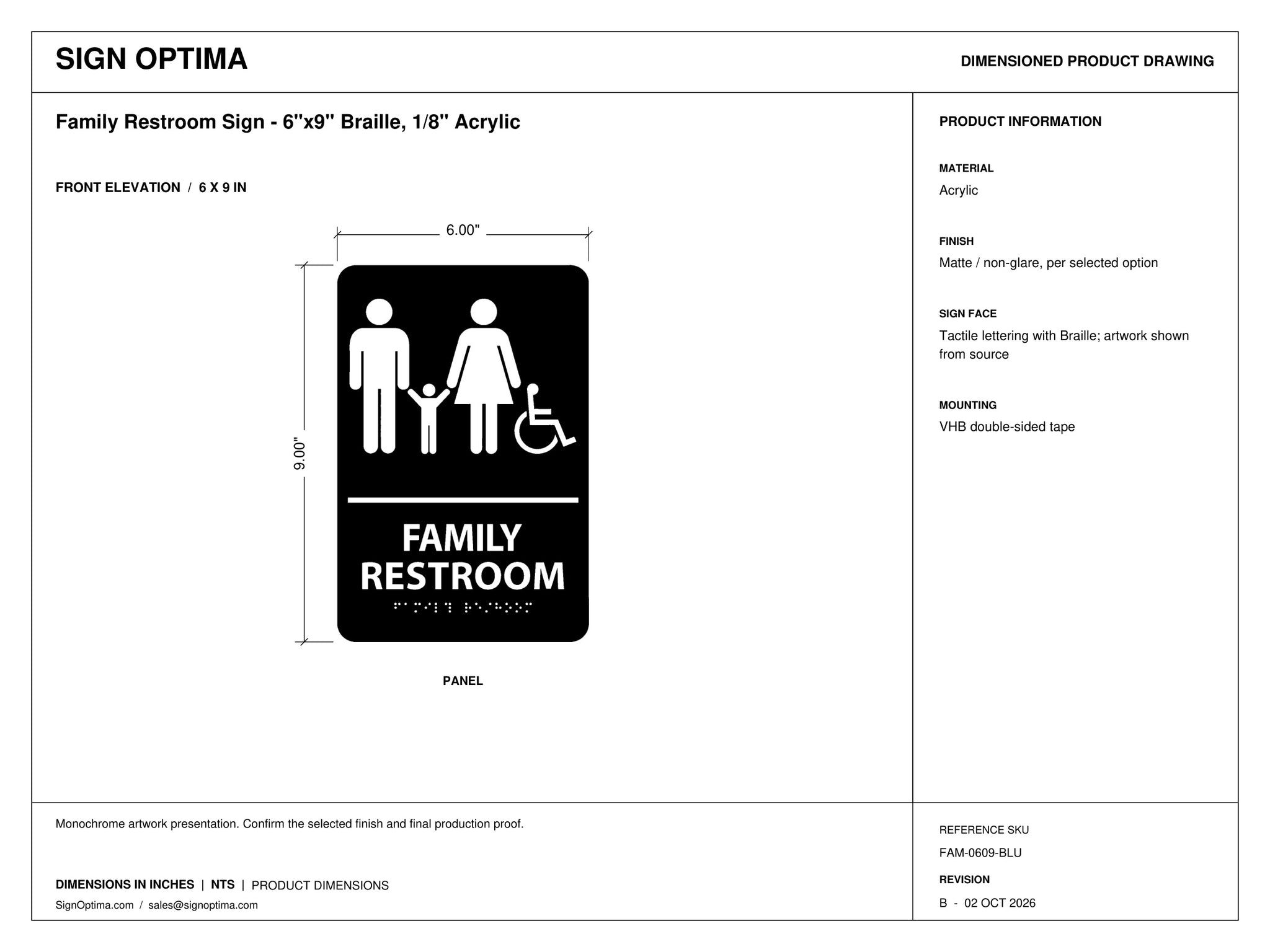

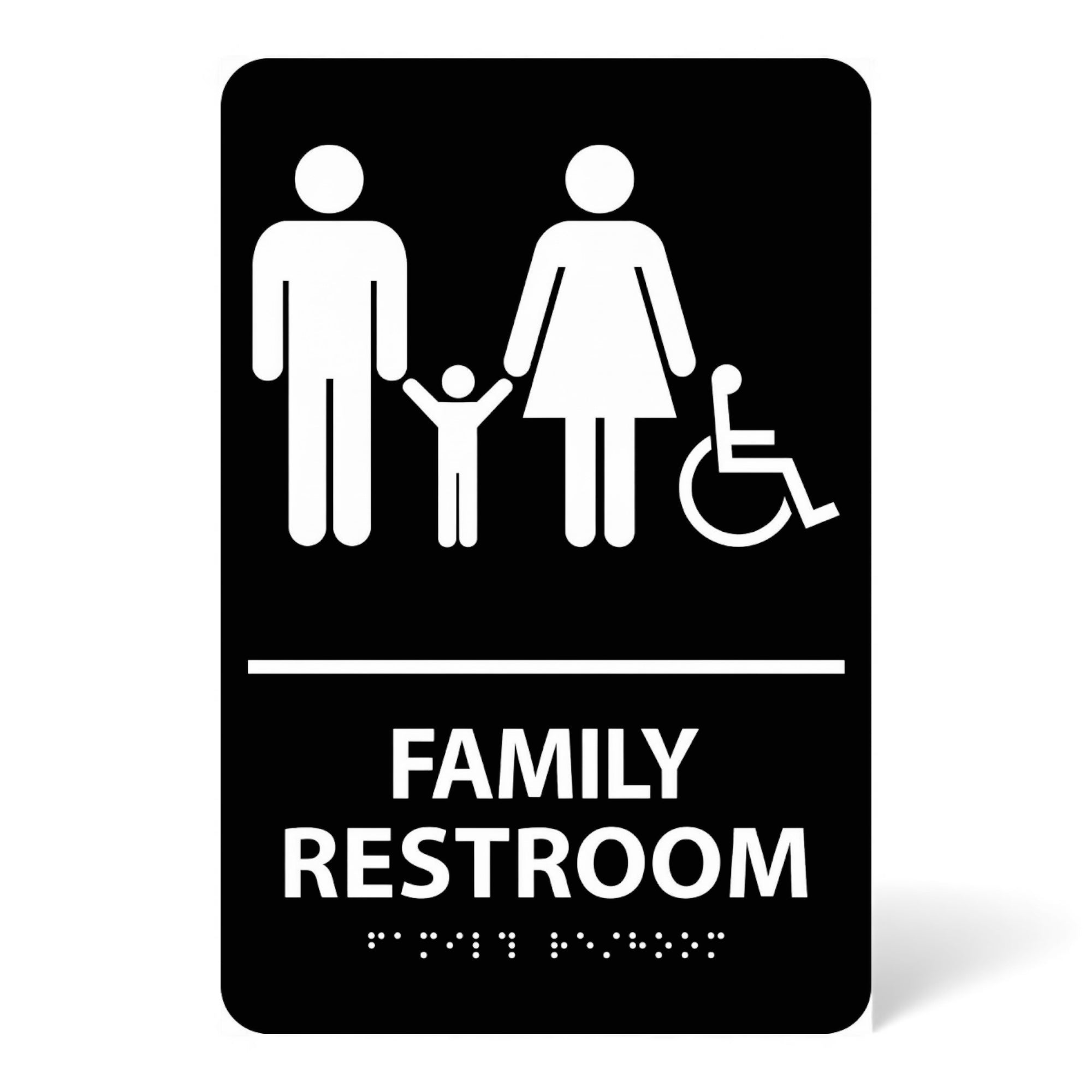

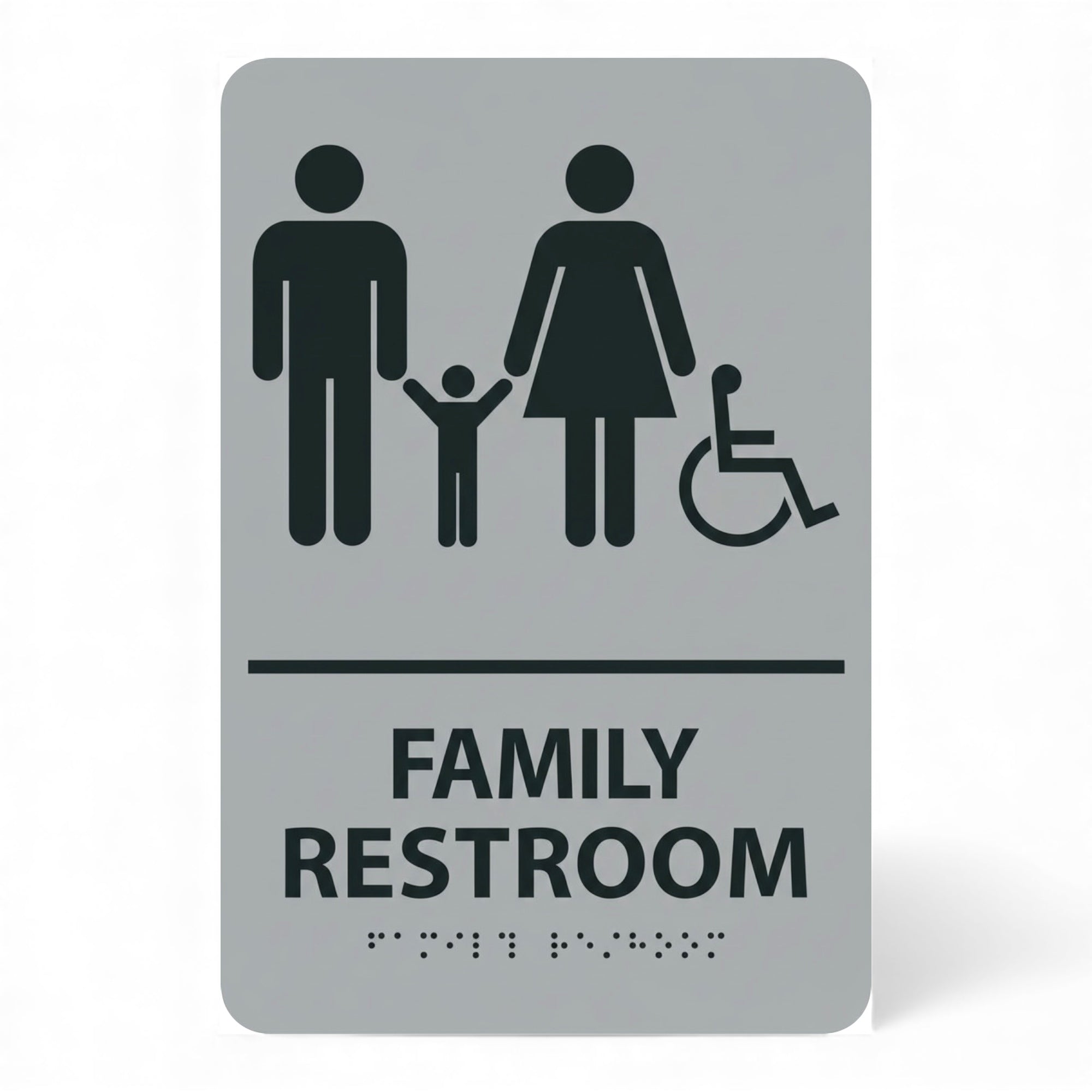

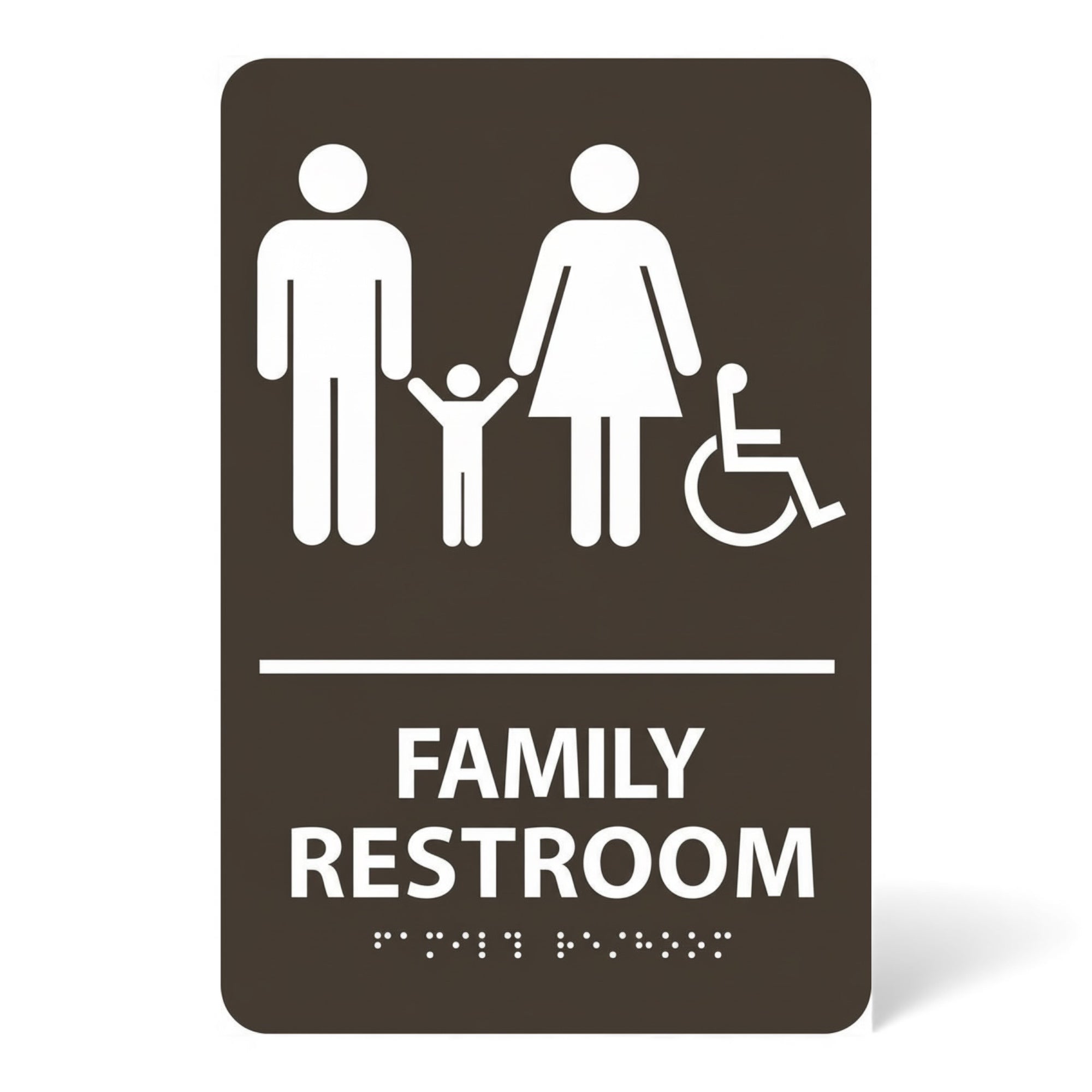

ADA Compliant Family Restroom Sign – 6"x9" Braille, 1/8" Acrylic
Identify a family restroom with this 6" x 9" ADA wall sign, with raised pictograms, raised letters and Grade 2 Braille. Restroom signs identify permanent rooms, so they need tactile text and Braille (2010 ADA Standards, Section 216.2).
Product Features:
- Size: 6" x 9"
- Text: "FAMILY RESTROOM" in 1/32" raised uppercase letters, with raised pictograms
- Braille: Grade 2, below the text
- Thickness: 1/8" acrylic
- Finish: matte, non-glare, with high-contrast graphics
- Colors: Blue, Black, Brown, Silver, Brushed Aluminum
- Mounting: high-bond double-sided tape
- Standards: built to the 2010 ADA Standards (Section 703) and CBC Chapter 11B
- SKUs: FAM-0609-BLU, FAM-0609-BLK, FAM-0609-BRN, FAM-0609-SLV, FAM-0609-BRUSH
Installation: Mount on the wall beside the door, on the latch side. Place the tactile text between 48" and 60" above the finished floor, with an 18" x 18" clear floor space in front of the sign, outside the door swing.
Note: Brushed Aluminum is made to order, with a brushed-silver face and black lettering. In California, add a circle-and-triangle geometric symbol on the door.
SignOptima® designs and manufactures ADA compliant, architectural and commercial signs in Anaheim, California.
Need bulk orders or custom colors? Contact us for volume pricing and design help.
