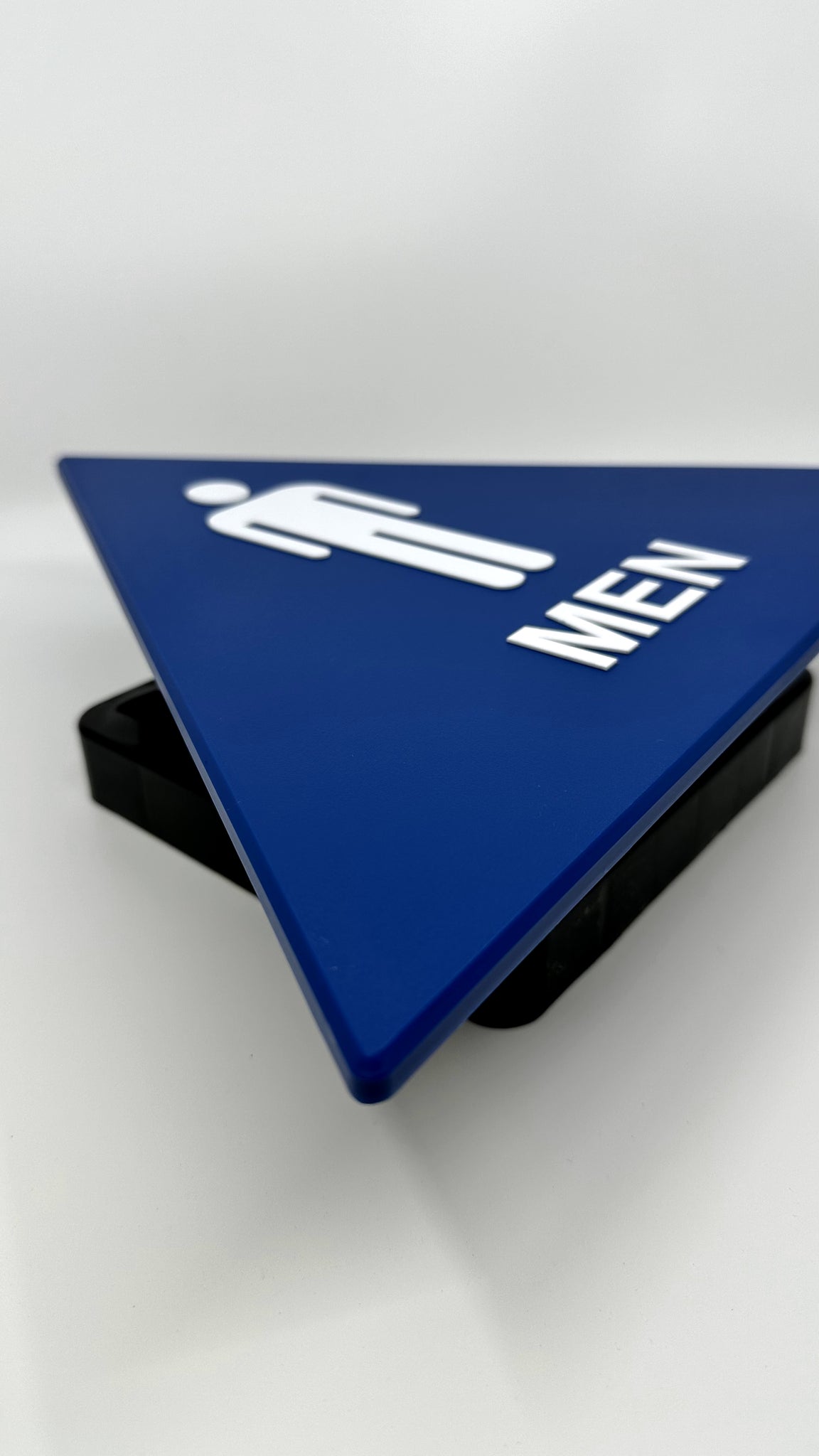

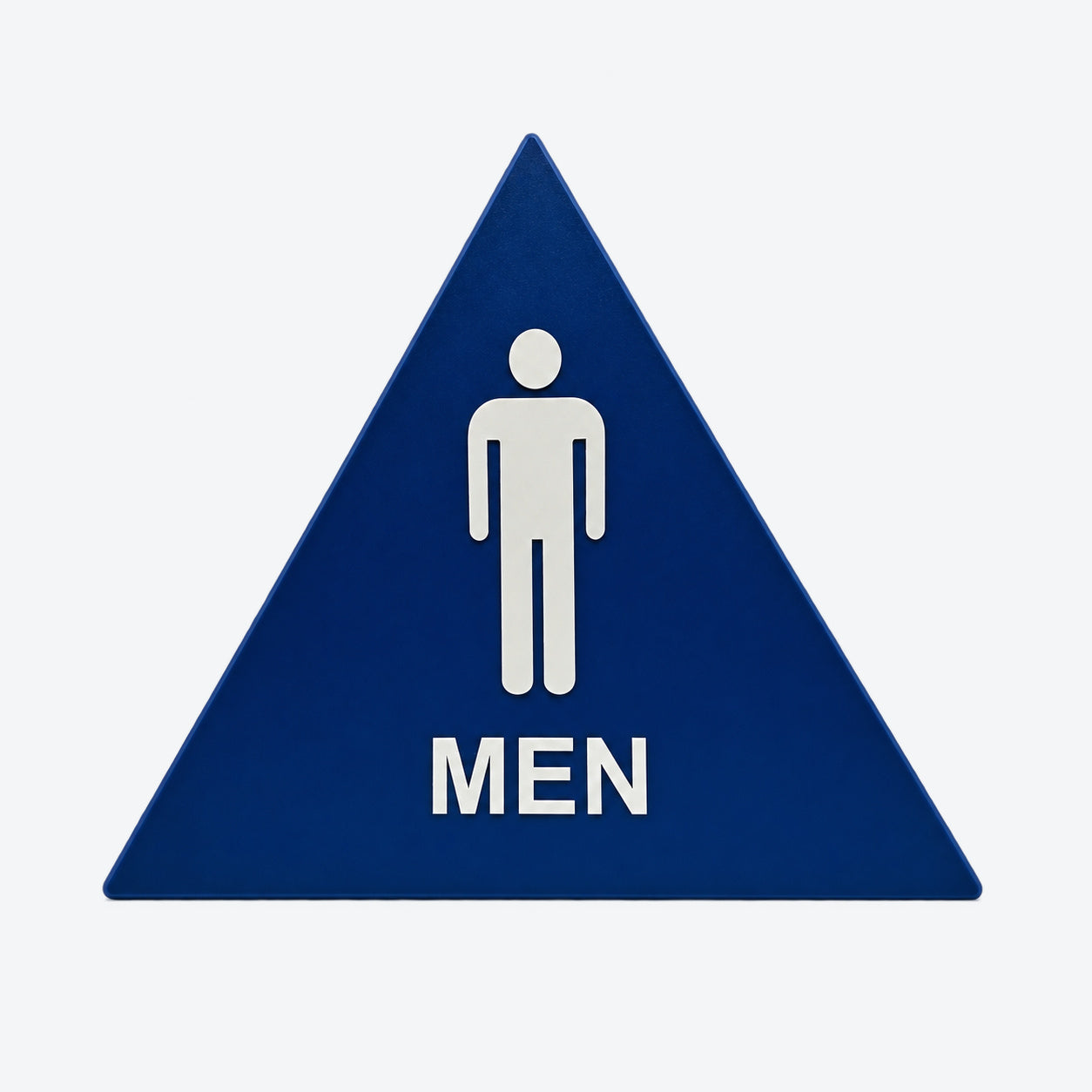

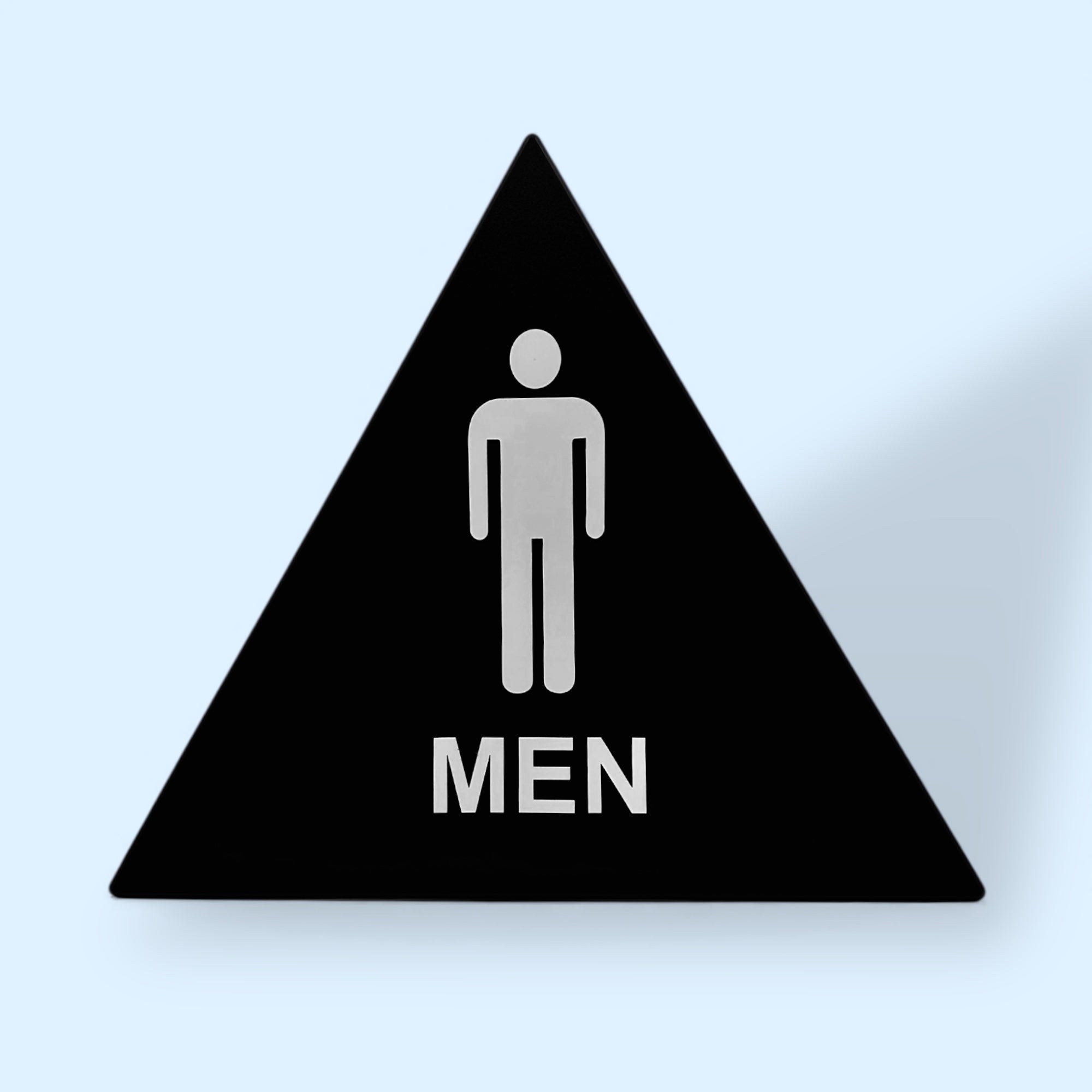

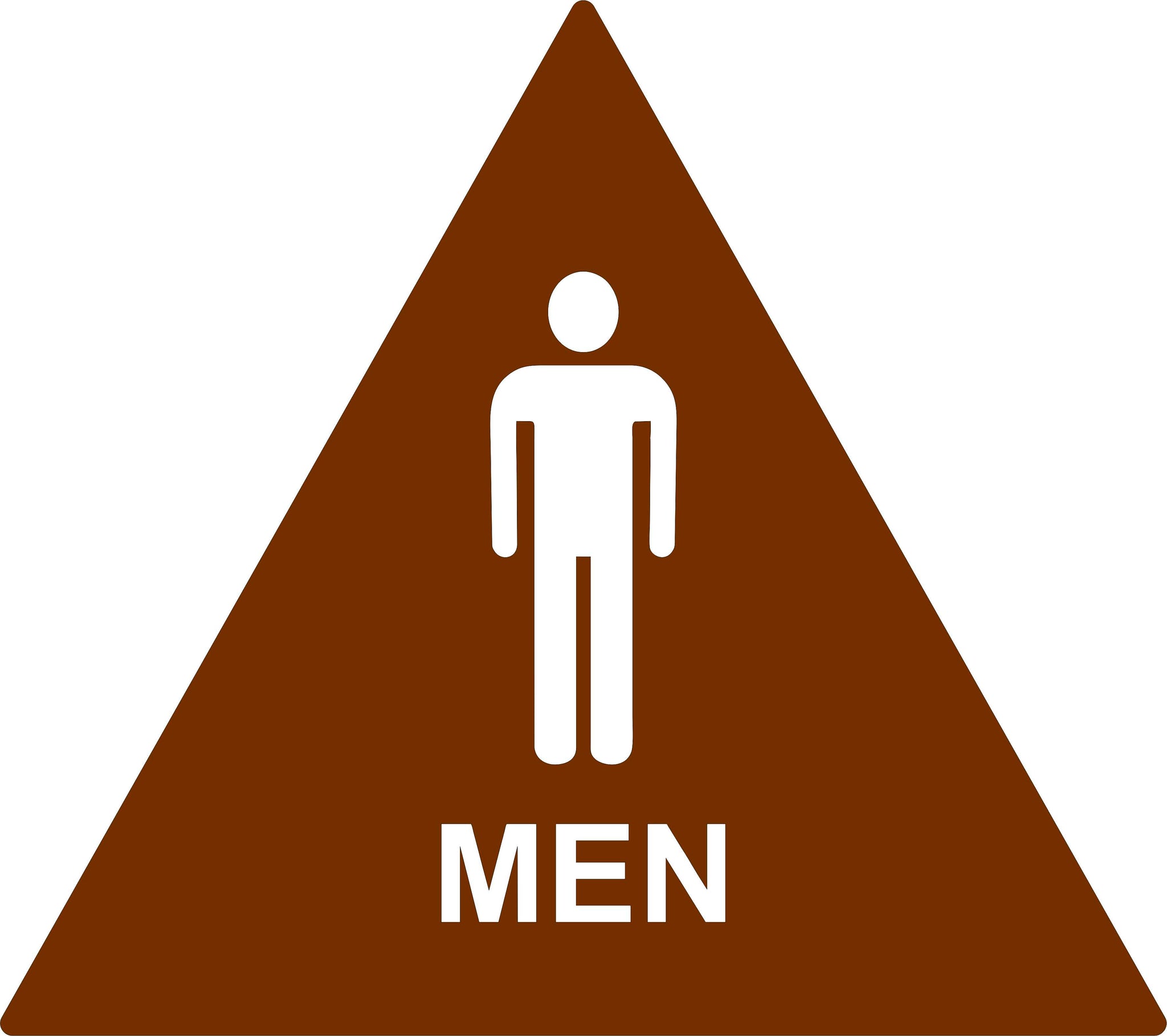

ADA Compliant Men's Geometric Triangle Restroom Door Sign

Mark the door of a men's restroom with this California Title 24 geometric door sign: a 12" equilateral triangle, point up, with a men's pictogram and MEN lettering. California requires a geometric symbol on every restroom door (CBC 11B-216.8).

Product Features:

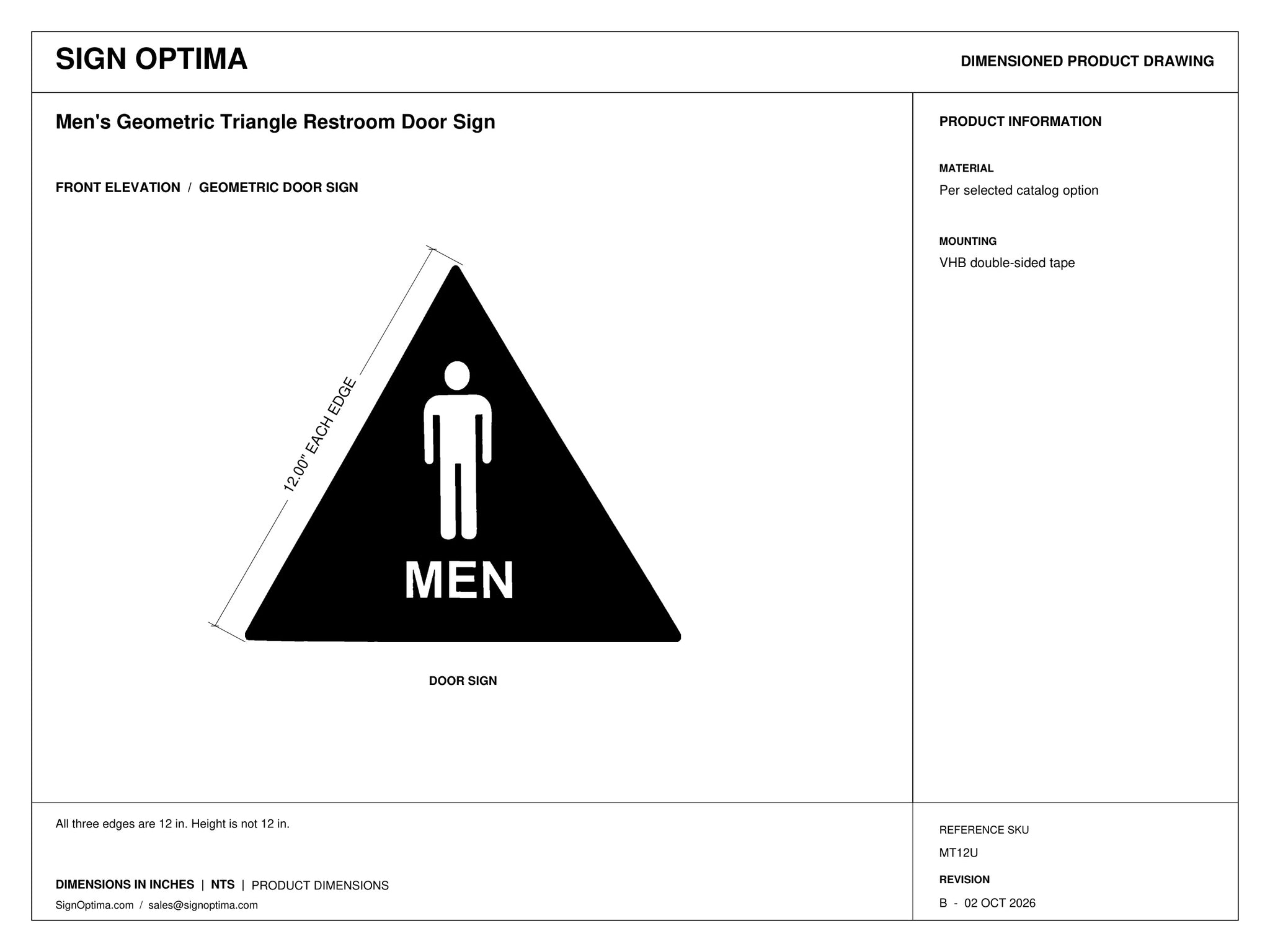

• Shape: equilateral triangle with 12" edges, vertex pointing up
• Thickness: 1/4", per the California requirement
• Graphics: men's pictogram and "MEN" in 1/32" raised letters
• Finish: matte, non-glare, with high-contrast graphics
• Colors: Blue, Black, Brown, Gray
• Mounting: high-bond double-sided tape
• Standards: built to California CBC Chapter 11B (Section 11B-703.7.2.6)
• SKUs: MT12U, MT12K, MT12W, MT12S

Installation: Mount on the door itself, centered within 1" of the door's vertical centerline. Place the center of the symbol 58" to 60" above the finished floor. Pick a color that contrasts with the door.

Note: California does not require Braille on the door symbol. It does require a separate tactile wall sign with Grade 2 Braille on the latch side of the door. Order the Men's Restroom Sign Set to get both.
