ADA Elevator Floor/Level Sign – 4"x4" with Braille

Identify each floor at the elevator entrance with this 4" x 4" ADA floor designation sign, with a raised floor number and Grade 2 Braille. The Main 1 sign includes a star to mark the main entry level.

Product Features:

• Size: 4" x 4"
• Floor: Main 1 (with star) or floors 2 to 22
• Text: 1/32" raised number
• Braille: Grade 2, below the number
• Thickness: 1/8" acrylic core
• Colors: Black, Blue, Brown, Silver, Brushed Aluminum, White
• Mounting: high-bond double-sided tape
• Standards: built to the 2010 ADA Standards (Section 407.2.3.1) and CBC Chapter 11B
• SKUs: ELV-M1-BLK, ELV-L02-BLK, and so on by floor and color

Installation: Mount one sign on each side jamb of the elevator entrance, on every floor. Place the center of the sign 60" above the finished floor. Order two signs per floor.

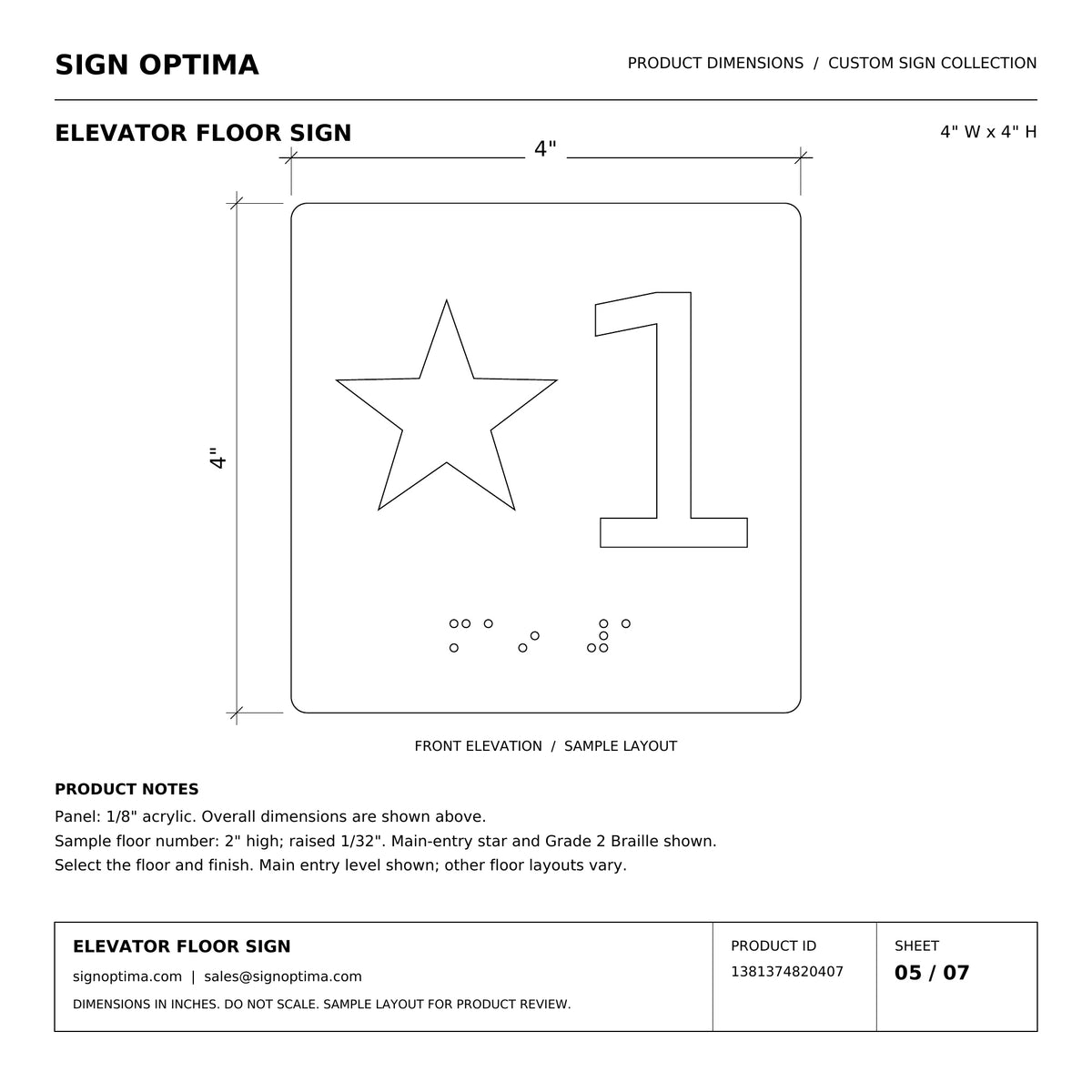

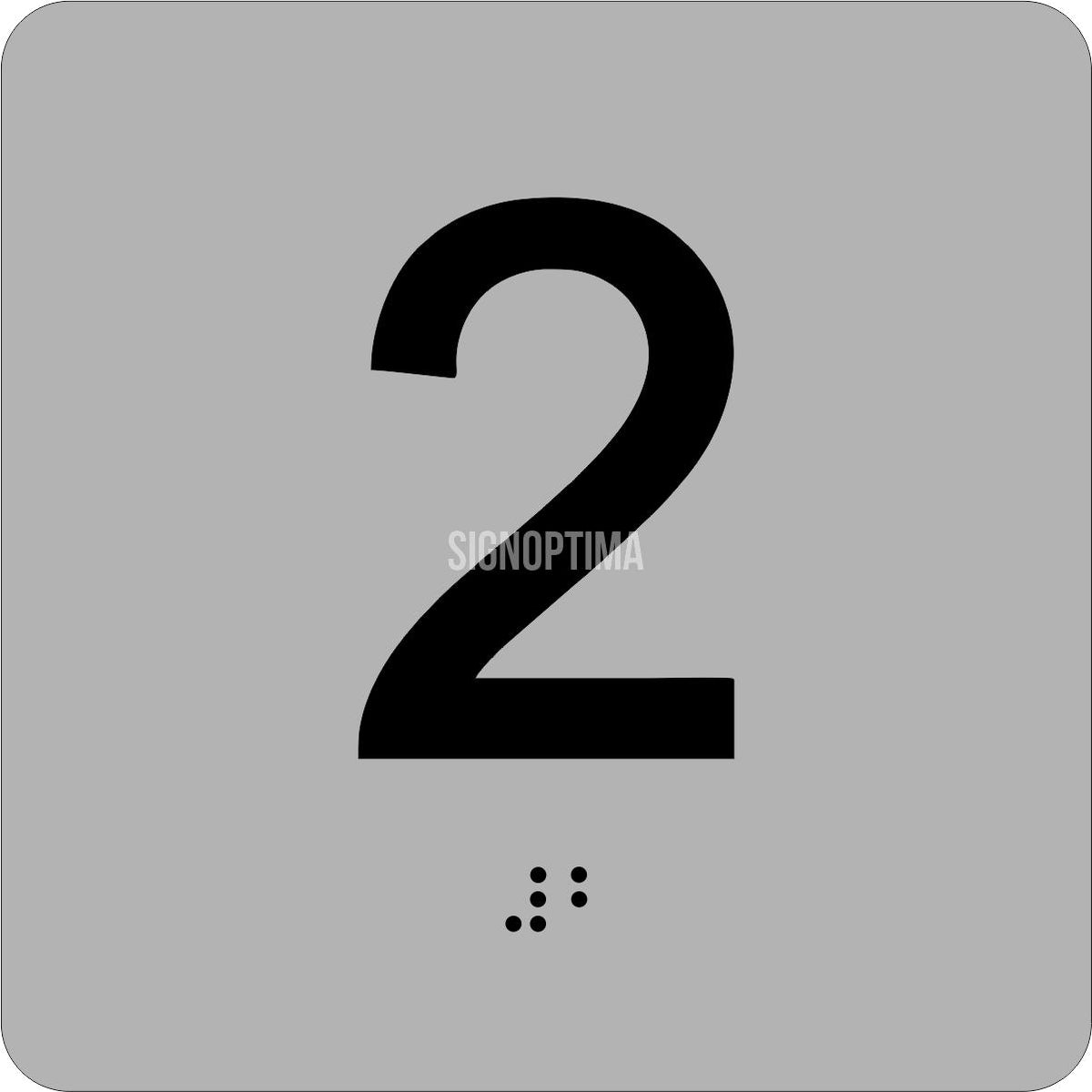

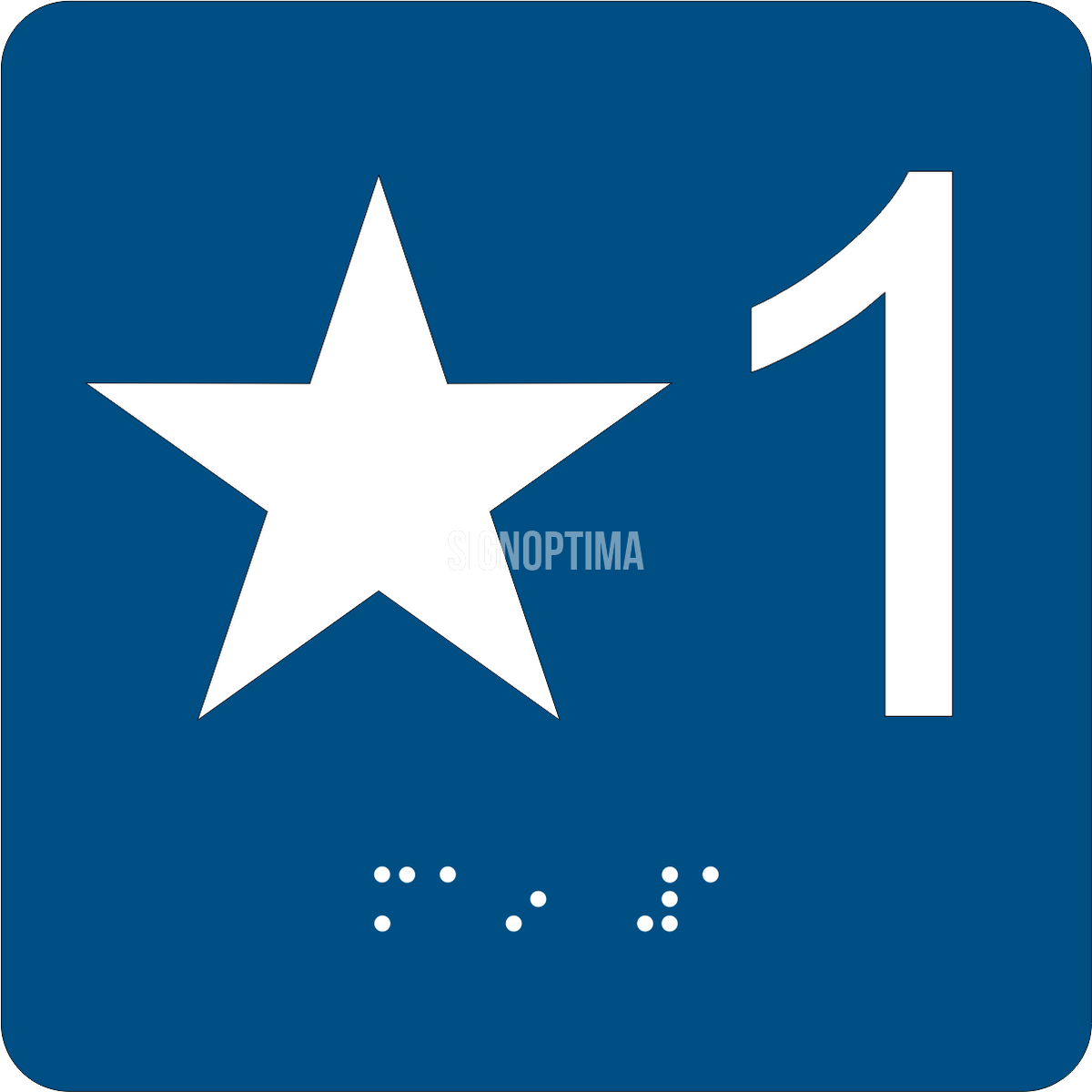

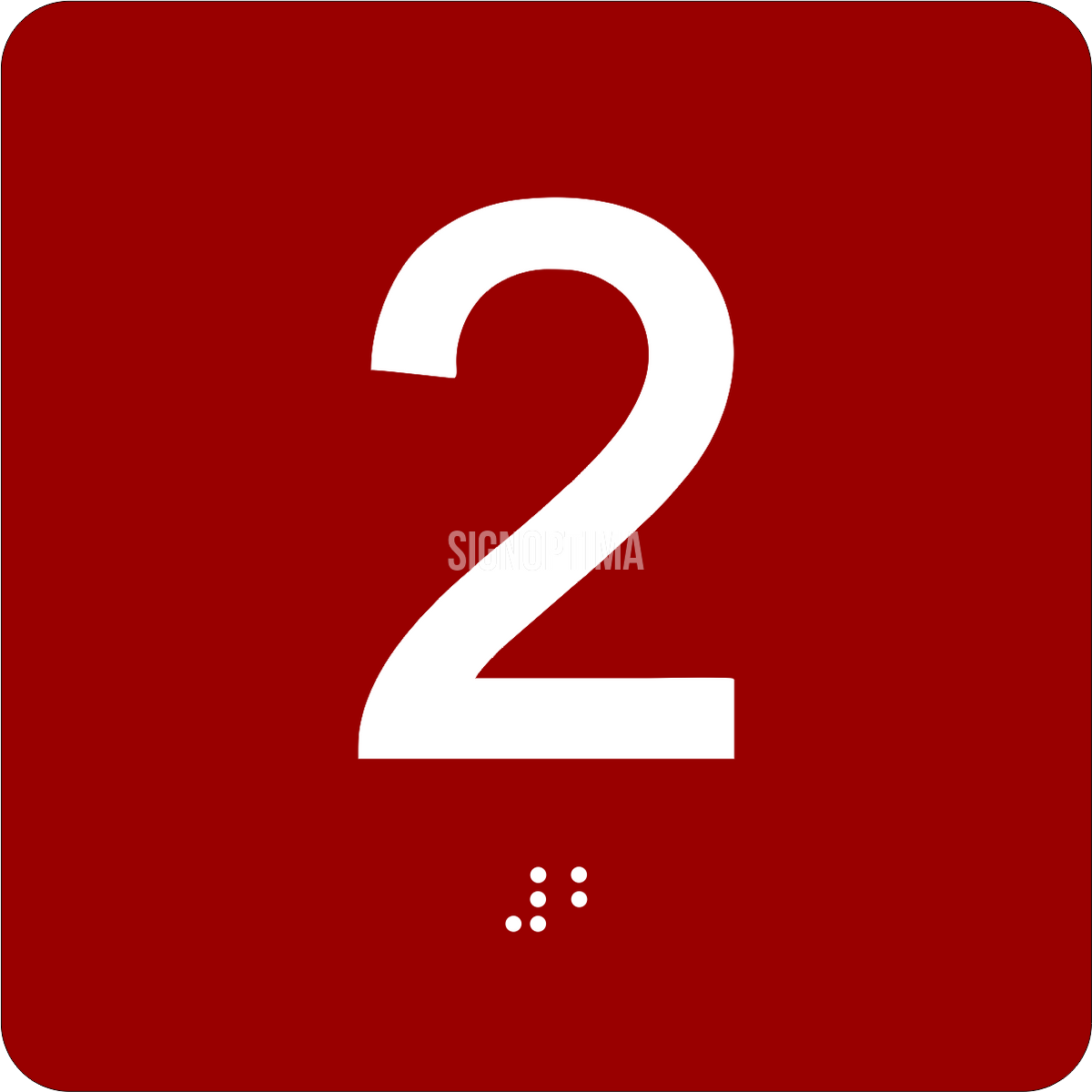

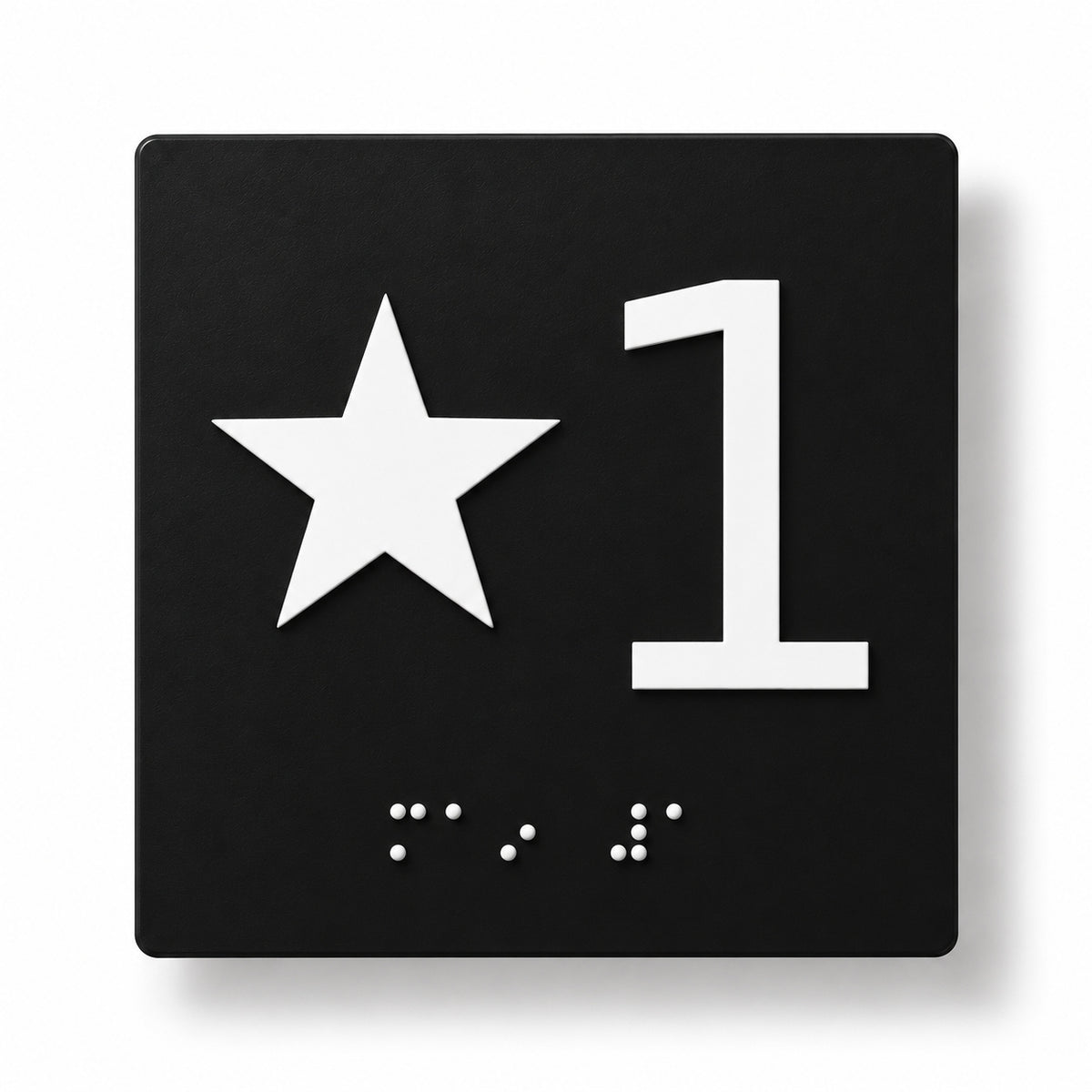

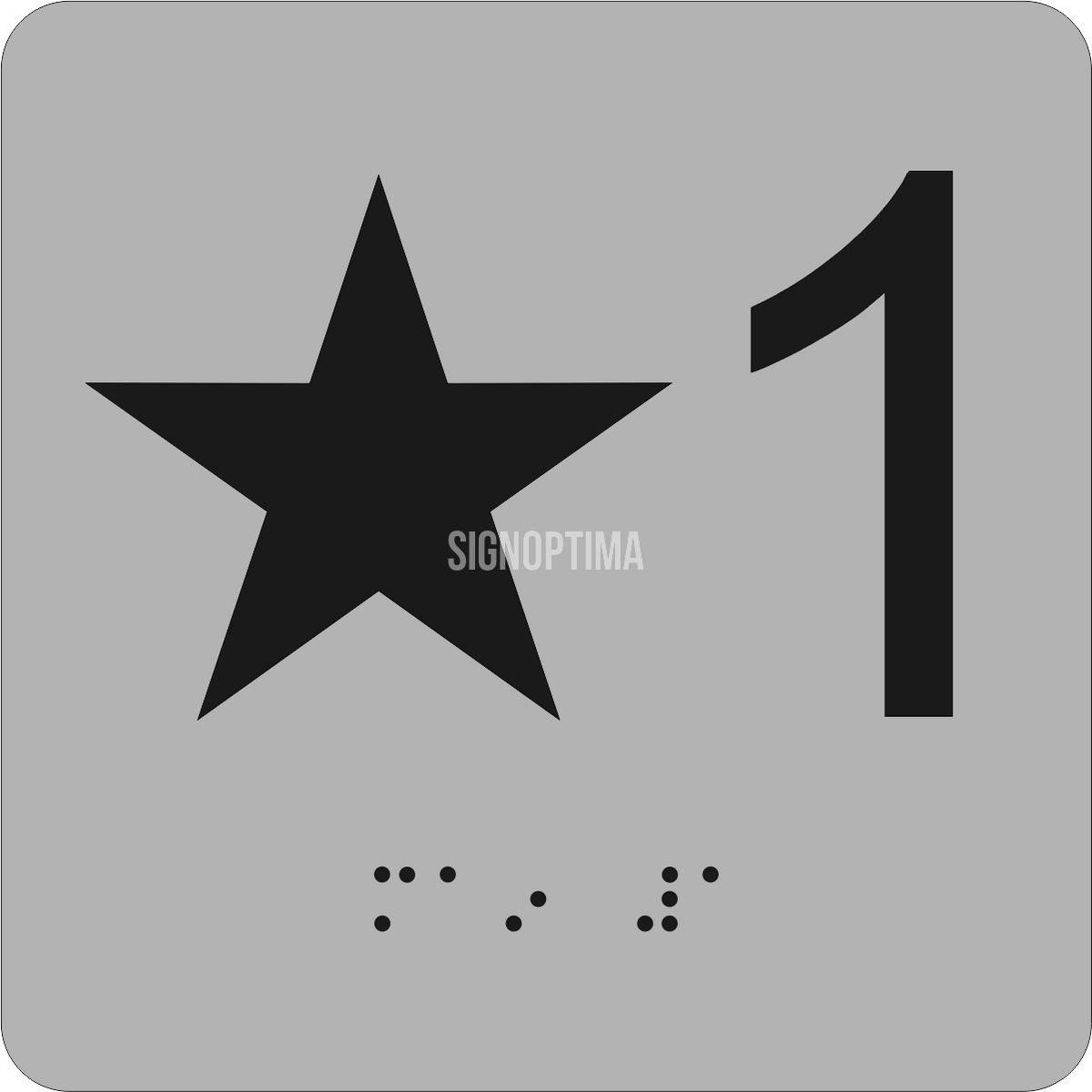

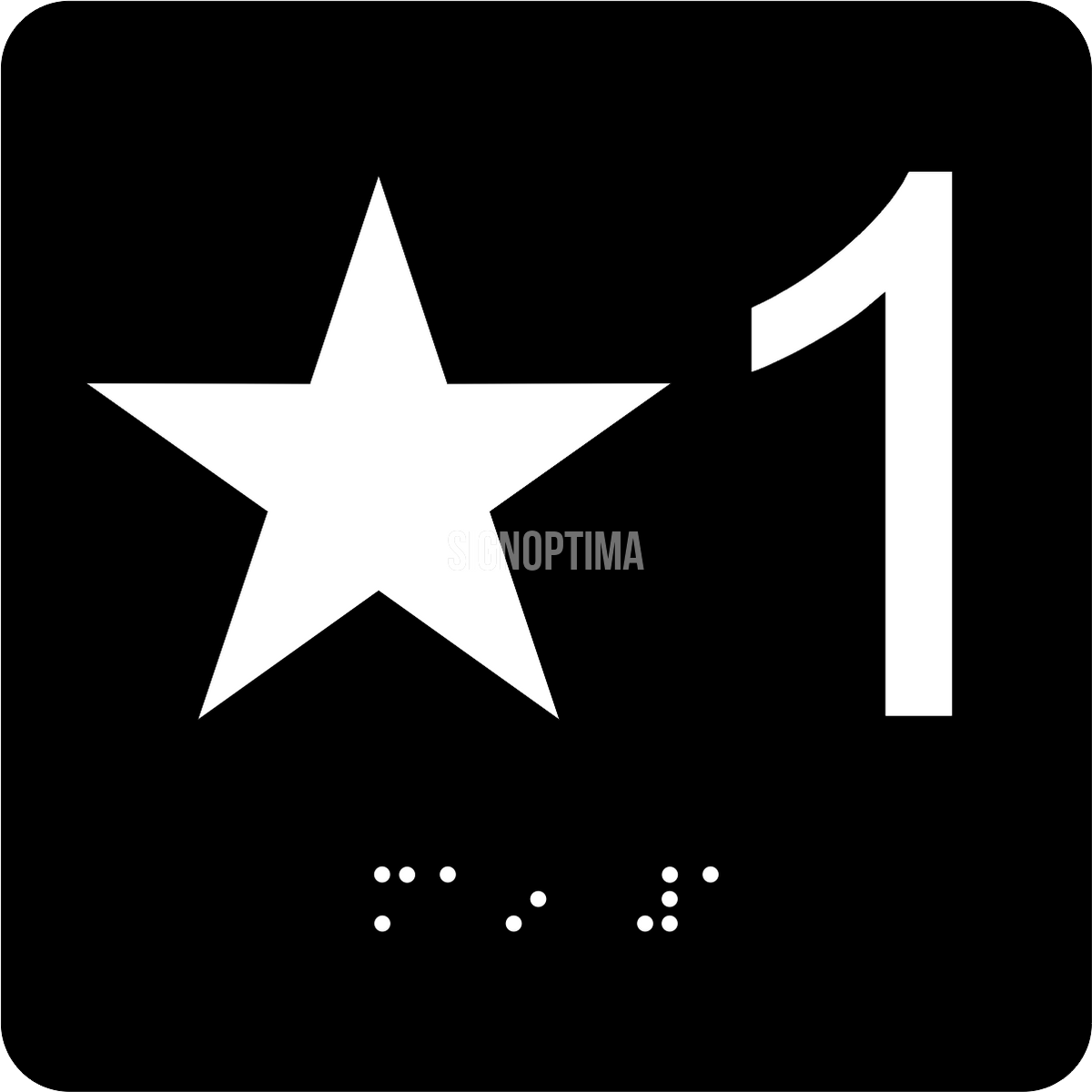

Note: Made to order. Black and brown have white lettering; white and brushed aluminum have black lettering. Photos show layout and finish samples; your sign is made with the floor you order.

SignOptima® designs and manufactures ADA compliant, architectural and commercial signs in Anaheim, California.

Need bulk orders or custom colors? Contact us for volume pricing and design help.
